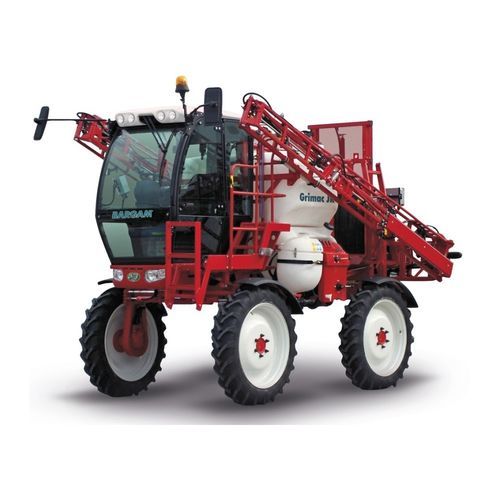

Self-propelled sprayer GRIMAC JR series

folding armswith diaphragm pump

● DEUTZ STAGE V 4 CYLINDERS ENGINE. RATED POWER: 105 KW (142 HP) AT 2200 RPM. (3A OPTIONAL) ● HYDROSTATIC TRANSMISSION FOR TWO FORWARD SPEEDS 0- 18 km/h 0- 36 km/h WITH MS05 MOTORS ON FRONT AND REAR WHEELS AND PUMP 75 ● HYDRAULIC STEERING SYSTEM ON FOUR WHEELS ● GROUND CLEARANCE 1000mm WITH WHEELS 230/95 R32 ● NEGATIVE BRAKES ON REAR WHEELS ● HYDROPNEUMATIC SHOCK ABSORBERS ON FRONT AXLE ● POLYETHYLENE TANK ● HYDRAULIC ANTISKID SYSTEM ● ROPS CAB WITH AIR CONDITIONING WITH ACTIVE CARBON FILTER, PNEUMATIC SEAT ● STEREO SYSTEM WITH CD PLAYER ● SYSTEM WASHING KIT WITH ELECTRICAL CONTROLS ON THE CAB ● HYDRAULIC FOLDING BOOM ● TRIJET JETS WITH 02 POLYMER AIR INDUCTION AND XR04-06VK CERAMIC NOZZLES ● HYDRAULIC BOOM HEIGHT ADJUSTMENT, STROKE 1200mm ● HYDRAULIC SELF-LEVELLING DEVICE WITH CONNECTING RODS ● ELECTROHYDRAULIC BOOM CONTROL WITH JOYSTICK ● Bravo 400S AragSPRAYCOMPUTER ● Ø19mm 5 WAYS ELECTRICAL PROPORTIONAL CONTROL UNIT (BOOMS 12/21 M) ● 35 LITERS MIXER ● CLEAR WATER TANK WITH SYSTEM CLEANING DEVICE ● INDICATOR KIT FOR DIAPHRAGM DAMAGE AND OIL LEAKAGE ● QUICK COUPLING FOR TANK FILLING HOSE ● WHEELS 230/95 R32 ● MANUALLY ADJUSTABLE TRACK – 2 FIXED POSITIONS: 1500mm - 1800mm ● FIXED TRACK, DIFFERENT FROM STANDARD, WITH WHEELS 340mm WIDE AT LEAST. ● MUDGUARDS
