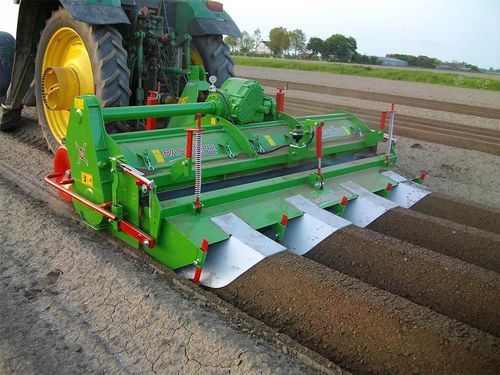

4-row bed former FK series

8-rowfor vegetables

Ridging Cultivator For steady crumbling structure in heavy soils for making ridges for potatoes and carrots. FK .2 steel wheels D500x180 with spindle adjustment .Ridging hood with parallelogram and crumbler tines .PTO shaft W2500 with slip clutch, tractor side 1 3/8’ – 6 splines 2FK 160 – 4FK 310 .PTO shaft W2500 with auto reset clutch, tractor side 1 3/8’ – 6 splines 4FKE 310 – 4FK 380 .Gearbox 250 HP – 1000 RPM, rotor shaft 360 RPM .Welded hook tines, tine clamps mounted on rotor shaft Ø 75 cm .FK rotor shaft driven on one side, exist of a fixed frame FKBW .2 steel wheels D500x180 with spindle adjustment 4FKB-W 310 – 4FKB-W 380 .4 steel wheels D500x180 with spindle adjustment 6FKB 460 – 8FKB 730 .PTO shaft P600 with auto reset clutch, tractor side 1 3/4’ – 20 splines .Gearbox 310 HP – 1000 RPM, rotor shaft 360 RPM .Welded hook tines, tine clamp mounted on rotor shaft Ø 75 cm .FKBW rotor shaft driven on both sides without middle bearing, exist of a fixed frame, 3-point connection Cat III FKB .2 steel wheels D500x180 with spindle adjustment 4FKB-W 310 – 4FKB-W 380 .4 steel wheels D500x180 with spindle adjustment 6FKB 460 – 8FKB 730 .PTO shaft P600 with auto reset clutch, tractor side 1 3/4’ – 20 splines .Gearbox 310 HP – 1000 RPM, rotor shaft 360 RPM .Welded hook tines, tine clamp mounted on rotor shaft Ø 75 cm .FKB rotor shaft driven on both sides with middle bearing, exist of a fixed frame, 3-point connection Cat III
