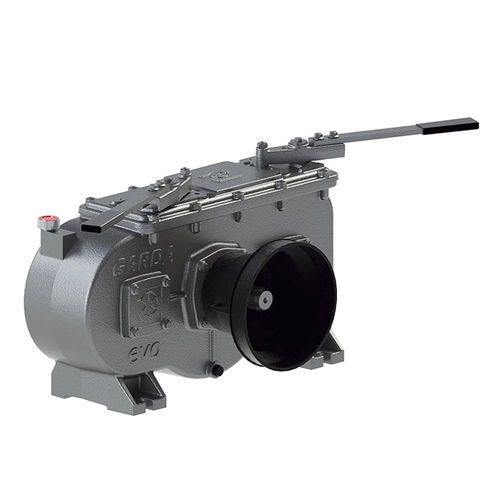

Centrifugal pump GARDA EVO

hydraulically-operatedPTO-drivenhigh-pressure

Garda Evo is a combined group that drives two outputs (rotary blade pumps, blowers, centrifugal pumps, high pressure pumps and PTO) also in the same time. STANDARD FEATURES • 1000 Rpm HOW TO CHOOSE YOUR CORRECT VERSION IN 3 STEPS 1° DEFINE PTO. Available options are: D Splined shaft 1"3/4 - Z6 ISO 500 - 1 lever DT Splined shaft 1"3/4 - Z6 ISO 500 - 2 levers DK Splined shaft 1" 3/4 - Z6 ISO 500 - 1 lever and hydraulic pump P smooth cylindrical shaft Ø40, lenght 79 mm, Parallel key UNI 6604 - 1 lever P smooth cylindrical shaft Ø40, lenght 79 mm, Parallel key UNI 6604 - 2 levers P smooth cylindrical shaft Ø40, lenght 79 mm, Parallel key UNI 6604 - 1 lever and hydraulical pump H hydraulic motor 129cc/rev-Pmax 400bar-In 1"G-Out 1" G - 1 lever H hydraulic motor 240cc/rev-Pmax 350bar-In 1"G-Out 1" G - 2 levers H hydraulic motor 129cc/rev-Pmax 400bar-In 1"G-Out 1" G - 1 lever and hydraulic pump 2° DEFINE EXIT A. Available options are: CENTR CENTRIFUGAL PUMPS GK ROTATING SHAFT JET HIGH PRESSURE PUMP. 2 LEVERS ONLY 3° DEFINE EXIT B. Check catalogue at pages 62-63-64, depending on your choise in step 2.
