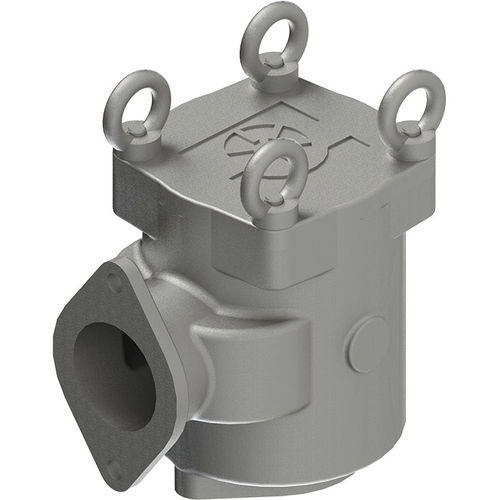

Air filter 500

watercartridge

Air filters Battioni Pagani are designed and manufactured to prevent the ingress of solid particles and dust inside of rotary vane vacuum pumps thus reducing wear of the blades and extending the life of the pump. The water filters Battioni Pagani are designed and manufactured to prevent the ingress of solid particles upstream of the water pump. The bodies and lids Pagani Battioni filters are made of aluminum alloy and the cartridges are made of 304 stainless steel to avoid chemical and Atmospheric aggression and ensure a long life INSTALLATION The filter must be installed with the inlet in the rear as shown in (Fig. 1) We recommend connecting to the filter through Battioni Pagani support available on request for the different types of pumps or by rigid metal pipes as close as possible to the pump. During the positioning of the filter, let the space for dismounting the cover and for the extraction of the cartridge MAINTENANCE During periods of non-use and during the winter season, always remove the liquid material contained in the filter. Clean the filter at least once a week and whenever it is deemed necessary based on usage. To clean the filter, we recommend the use of detergents with passivating and protective properties. Dry properly the cartridge and the whole filter after cleaning.
