Seed sorter

liquid

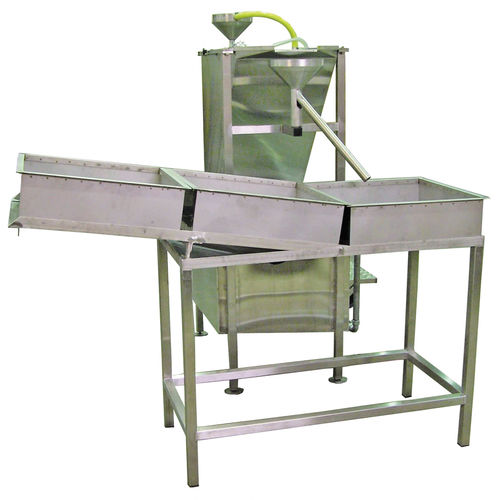

Liquid Separation is used as a continuous process for separation of mechanically damaged seed, seeds with insect damages, resin particles and other particles that resemble the seeds in size and form, but have a dissimilar relative density. A washing effect is also achieved, as dust and wing particles stuck to the seed are removed. Liquid separation is an efficient method for many species and seed lots, although this process is not always required after seed extraction. The Liquid Separator is commonly used in small to large scale seed processing plants where seed requires a liquid separation process. SPECIFICATIONS Dimensions (L x W x H): 3800mm x 2000mm x 2500mm (incl. seed hopper) Weight: 200kg Power supply: 3 x 400V, 50Hz Power requirement: <0.50 kW Design capacity: 10 – 50 kg seed/hour Volume of seed hopper: 100 liters Total water volume: 200 liters Water supply: 20-50 liters/minute at 10-30°C (adjustable temperature is preferred) Construction: Stainless separation tank and bottom tank with pump and pipes for water circulation.
