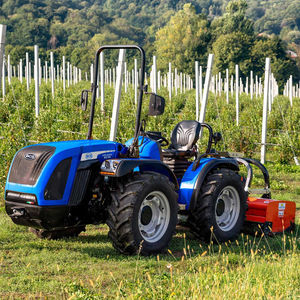

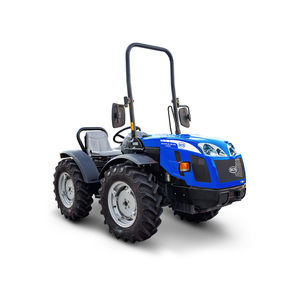

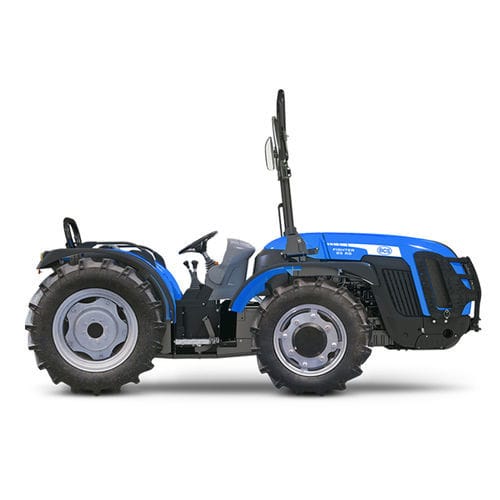

Mechanical transmission tractor Fighter 85 RS
vineyard4-cylindercompact

mechanical transmission tractor
mechanical transmission tractor
mechanical transmission tractor
mechanical transmission tractor
mechanical transmission tractor
mechanical transmission tractor
mechanical transmission tractor
Add to favorites
Compare this product


Characteristics

Transmission
mechanical transmission
Applications
vineyard
Number of cylinders
4-cylinder
Other characteristic
compact, with cab, 3-point hitch, with ROPS
Engine power

75 ch
(75 hp)

Displacement

2,482 cm³
(84 US fl oz)

PTO speed

540 rpm, 1,000 rpm
(3,392.9 rad.min-1, 6,283.2 rad.min-1)

Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 300 Nm
(221 ft.lb)

Maximum speed

Min.: 0.7 km/h
(0.4 mph)

Max.: 40 km/h
(24.9 mph)

Fuel tank capacity

78 l
(20.6 gal)

Total length

3,935 mm
(154.9 in)

Total height

Min.: 2,216 mm
(87.2 in)

Max.: 2,291 mm
(90.2 in)

Weight

2,260 kg
(4,982.4 lb)

Description

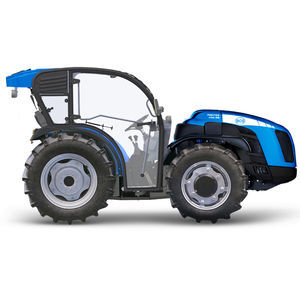

Fighter 85 RS was developed to satisfy customers looking for a solid and efficient machine, with basic and essential set-up. The oversized rear wheels guarantee traction also on difficult terrain, while the front wheels, with smaller diameter, ensure reduced turning radii. Compact, agile and with low centre of gravity, Fighter 85 RS is the ideal tractor for working in orchards and vineyards, also on slopes, olive groves, greenhouses, canopy plantations or characterised by low foliage. The new ‘Compact Pro’ cab (optional) with an ultra-low profile and height off the ground of only 170 cm, pressurised and Category 4 approved, ensures comfort and full operator protection. RS | Steering wheels The oversized rear wheels, available in 20 or 24”, ensure high lifting capacity (2700 kg) and traction on any type of ground. The OS-Frame and the steering acting on the front wheels ensure stability and adherence in any operating condition, even on slopes. The standard manoeuvring brakes further reduce the turning radius for more agility between the rows. Clean power. Fighter 85 is equipped with a 75 hp 4-cylinder Turbo Intercooler engine with particulate filter, that BCS Croup worked on in collaboration with Kohler, their technological partner, for an advanced regeneration strategy guaranteeing maximum performance and reducing machine downtime to a minimum. The engine revs are electronically adjusted quickly by a manual lever and a button that stores and retrieves the set speed. New work station. The driver's seat was designed to combine ergonomics and comfort with close attention to the layout of the controls according to the logic applied to field tractors.
