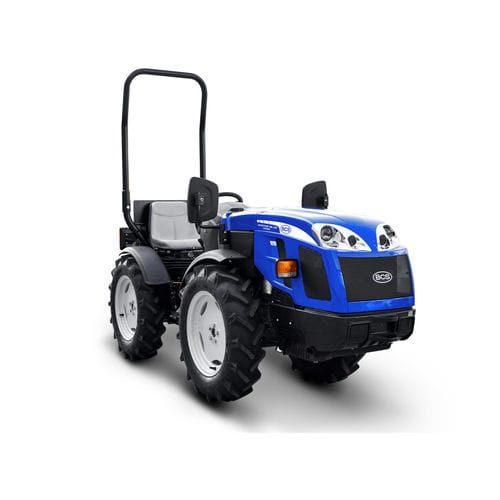

Narrow tractor Invictus 35 AR Junior Micro
mechanical transmissionvineyard3-cylinder

narrow tractor
narrow tractor
narrow tractor
narrow tractor
narrow tractor
narrow tractor
narrow tractor
Add to favorites
Compare this product


Characteristics

Type
narrow
Transmission
mechanical transmission
Applications
vineyard
Number of cylinders
3-cylinder
Other characteristic
compact, 4 wheel drive, wide, isodiametric, 3-point hitch, with ROPS
Engine power

25 ch
(25 hp)

Displacement

1,123 cm³
(38 US fl oz)

PTO speed

540 rpm
(3,392.9 rad.min-1)

Torque

Max.: 72 Nm
(53 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Total length

2,891 mm
(113.8 in)

Total height

Max.: 2,059 mm
(81.1 in)

Min.: 2,022 mm
(79.6 in)

Weight

975 kg
(2,149.5 lb)

Description

Invictus 35 AR Junior Micro is a super narrow tractor with four equal drive wheels. In fact, its size makes it an indispensable ally in the cultivation of micro-row crops and vines with limited widths, in vegetable cultivation, in greenhouses and suitable for nurseries for the cultivation of Christmas trees typical of Northern Europe. Simple and multifunctional, the Invictus 35 AR Junior Micro is the ideal tractor for demanding farmers looking for agility in tight spaces, performance and reliability. Junior Micro | Essential equipment and compact dimensions The Junior version is characterised by a basic and essential standard equipment, but widely configurable thanks to the wide choice of options available. The Micro models are the super narrow versions characterised by a very narrow overall width: only 77 cm with 5.00-15 wheels! Generous engine. The Invictus 35 range is equipped with a 3-cylinder Kubota 3 engine which develops a 25 hp @3000 rpm. Water cooled, it ensures smooth and gradual power supply with minimum fuel consumption. The exhaust pipe is located inside the front bumpers, freeing the bonnet from protruding elements. The opening system of the tractor's bonnet provides full access to the engine, facilitating routine maintenance operations. Versatile and widely configurable. The basic set-up of the Junior Micro version, simple and essential, is widely configurable to meet any specific work requirement: • Rear up/down lifter with two cylinders and a lifting capacity of 950 kg. • Rear hydraulic outlets. • Optional height-adjustable steering wheel. • Pair of front work lights, adjustable rear light and rotating lamp.
