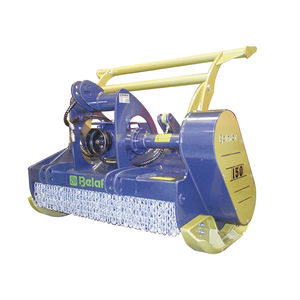

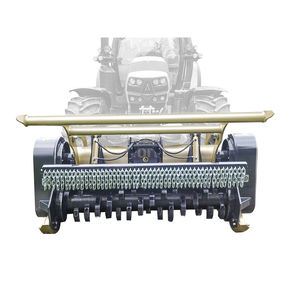

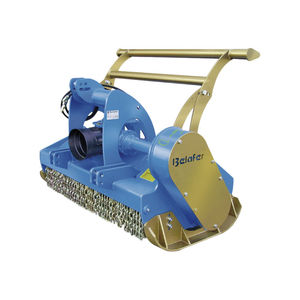

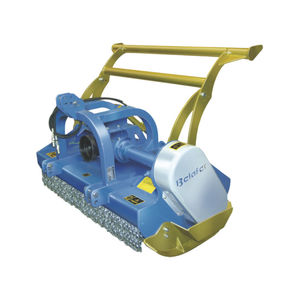

Mounted mulcher TRF Series
hammerforestryPTO-driven

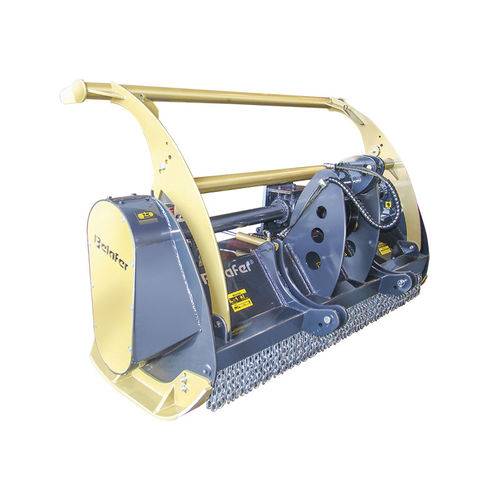

Mounted mulcher - TRF Series - Belafer - hammer / forestry / PTO-driven
Mounted mulcher - TRF Series - Belafer - hammer / forestry / PTO-driven
Mounted mulcher - TRF Series - Belafer - hammer / forestry / PTO-driven - image - 2
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
forestry
Other characteristic
PTO-driven, hydraulic
Cutting width

160 cm, 180 cm, 200 cm, 220 cm, 240 cm
(62.99 in, 70.87 in, 78.74 in, 86.61 in, 94.49 in)

Tractor power

Min.: 85 ch
(85 hp)

Max.: 220 ch
(220 hp)

Description

Forestry shredder TINEO and TINEO-S for tractors, are designed for tractor powers from 90 to 450Cv. also provided with treated steel hammer rotor axles and fairings for shredding up to 80 CM. Chassis with high elastic limit plates, hydraulic tailgates and chutes compose the general set of the machine. The transmission systems to pulleys and belts (6 “C” type belts from Tineo 180 to 200 and 12 belts with double transmission in Tineo 220 and 240). The differential groups with incorporated free wheel and of powers from 130 to 260 CV. The rotors can be mounted with 1.5 kg double cut hammers or with the standard 2.5 kg Tineo hammer. Maximum crushing capacity in all types of terrain, low brush, forest felling after a fire or cleaning in high density forests as a prevention of forest fires. Standard: -Transmission by “C” type belts. -Hydraulically folding gate. -Reinforced floating hammer rotor shaft. -Freewheel drive. -Models TRF-220 and 240 with double belt transmission on each side. -Wedge hammer in the standard model.
