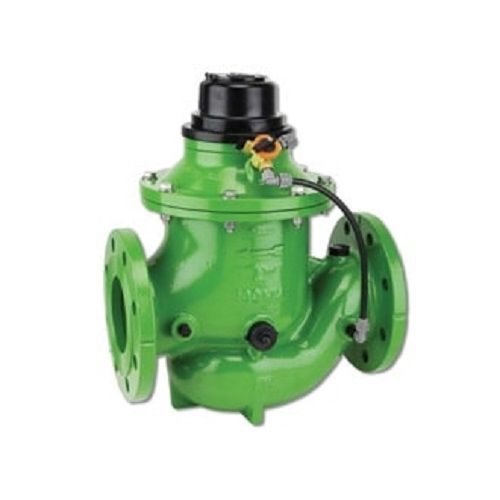

Irrigation hydrometer IR-900-M0-Z

The BERMAD Hydrometer with Magnetic Drive integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. The impeller drive is magnetically coupled to a vacuum-sealed meter register in the control head. As the system's Flow Meter and Main Valve, it controls system irrigation together with the irrigation controller. The BERMAD Model IR-900-M0-Z opens or shuts in response to remote pressure commands while continuously and accurately transmitting flow data. PRODUCT FEATURES & BENEFITS •Integrated “All-in-One” Control Valve -Saves space, cost and maintenance •Hydraulically Controlled Hydrometer -Line pressure driven •Magnetic Drive with Vacuum-Sealed Register -Water-free gear train mechanism -Reed-switch and Opto pulse-generating modes -Varios pulse combinations •Internal Inlet & Outlet Flow Straighteners -Saves on straightening distances -Maintains accuracy •Integrated Flow Metering Calibration Device -Precise measurement •User-Friendly Design -Simple in-line inspection and service
