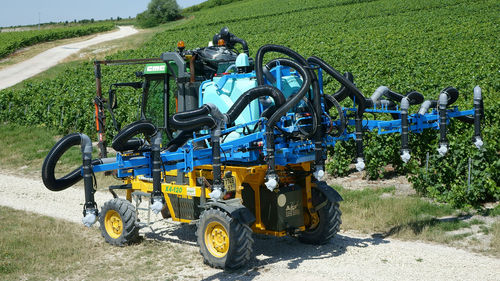

Mounted sprayer CRUIS’AIR Platform

for viticulturehydraulicpneumatic

The BERTHOUD CRUIS’AIR spray unit adapts to all types of platform straddle tractors, such as TECNOMA straddle tractors. The platform straddle tractor and BERTHOUD spray unit assembly offers great manoeuvrability to vineyard operators thanks to its reduced transport width. The CRUIS’AIR spray unit is available in 2 capacities: 800 litres and 1,500 litres. Three types of booms can be fitted to the unit: ACTIVE booms with vertical folding, INTENSIVE booms with simplified manual spacing and hydraulic telescopic EXTENSIVE booms with proportional spacing. Technical characteristics Tank-chassis - – hand wash tank (20l) and Rinse tank (200l) – One-piece chassis protected by U.H.R. polyester paint – Retractable ladder and work platform – Polyethylene ventilation cage with integrated air distributor. – Hydraulic drive system Ventilations - SPEEDAIR – High-pressure closed impeller fan 16 blades ø 560 mm. SUPAIR – High-pressure closed impeller fan 20 blades ø 630 mm. Pump - – Piston diaphragm pump (20 bar 105l/min). – Hydraulic drive system. – The tractor must be fitted with a flow divider for Operation - – Valves grouped together on Berlogic with position indicators. Equipement - – CG EXPERT : Face to face pneumatic from above – AB MOST : Face by face pneumatic in the line spacing – AIR DRIVE : Face by face jet carried between the lines
