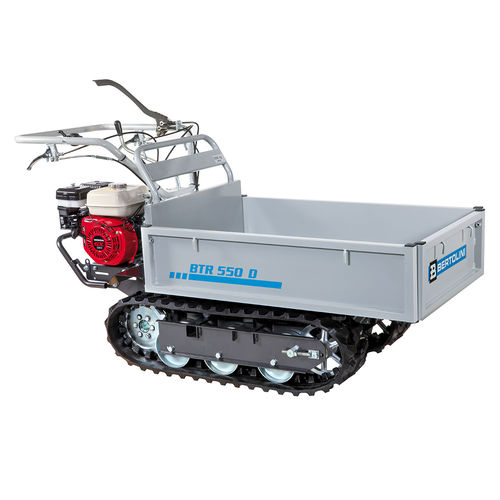

Swivel-skip mini dumper BTR 550 D

crawlerdiesel

Professional model offering a combination of high power, easy handling and high load capacity. The transporter is ideal for applications in the agricultural and building sectors. Tipping is hydraulically operated to provide the maximum possible assistance for the operator during material handling activities. Gearbox:6-speed (4 forward + 2 reverse) Load capacity:550 Kg Lift/dump:hydraulic Transmission:with gears in oil bath Clutch:belt, with automatic disengagement when the control lever is released Brakes:with automatic cut-in when the clutch is released Body:telescoping Dump angle:50° Steering:with independently controlled releases and brakes Minimum turning radius:700 mm Power take-off:independent at 2100 rpm Weight:215 kg
