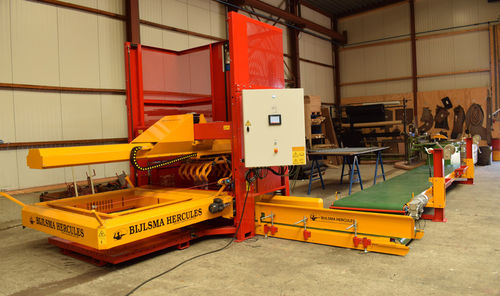

Bag palletizer BHB 550-2

The bags are fed to the machine by an optional (sewing) conveyor. A bag tilter tips the bags onto the infeed roller conveyor. Specially shaped rollers ensure that the bags are flattened. A bag lift lifts the bags, after which they are grasped at the correct height by a product-friendly gripper. The gripper, which is mounted on a trolley, moves to the correct position above the pallet and releases the bag. The bag is placed in the right place via a filling funnel. STANDARD EQUIPPED WITH .Possibility to create a random stacking program on the touchscreen. The system is provided with stacking categories, making it easy to implement. .Infeed of the bags and outfeed of stacked product is possible from several sides. .Positioning of each bag is easy to change. .Stacking hopper for perfect stacking of the pallets. The stacking hopper is equipped with inserts for Euro pallets and cooling pallets. Standard dimensions 1,600 x 1,600 mm, 275 mm high. .Switchbox with hinge construction. .Control of the motors by frequency converters. .Rubber / nylon running wheels, so there is no noise and wear on the transport mechanism of the bags. .Height adjustment by a robust chain instead of a steel cable or lifting straps. .Roller conveyor with 10 oval rollers for leveling the bags and an optimal stacking result. .Electric bag lift with a double V-belt construction for a high capacity. .Plug-in sleeves for easy moving of the machine with a forklift. .Potential free contact for connection to a sewing street.
