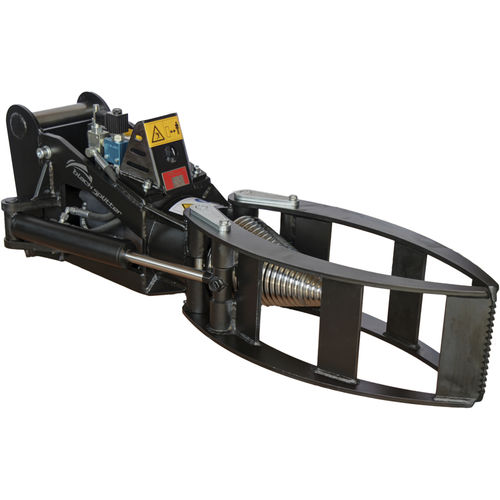

Hydraulic wood splitter SG1

conemountedPTO-driven

Excavator: 1.5 - 6 metric tons (optional up to 8 metric tons) Weight: 166 - 178 kg Cone: chromium steel double-edged threads 200 mm dia. two parts 24 mm thread pitch Hydraulic Motor (optional) •630: 180-240 bar, 666 cc, max. torque 2338 Nm •800: 180-240 bar, 801 cc, max. torque 2475 Nm Motor Shaft: 100 mm dia., bearing-mounted and sealed Hydraulic Cylinders: 2 x 3500 kg compressive force For 1 auxiliary hydraulic control circuit, a motor case drain line and a control cable are needed. Most Black Splitter accessories are compatible with the Black Splitter SG1 and can be mounted onto the motor shaft flange in place of the cone. Grab Arms: Hardox steel mounted in sinter bushings surface-hardened pins and bolts Various Models Possible: •for excavators with 1 or 2 auxiliary hydraulic control circuits •special system to enable splitting within the grab arms (available only for 1 auxiliary hyraulic control circuit)
