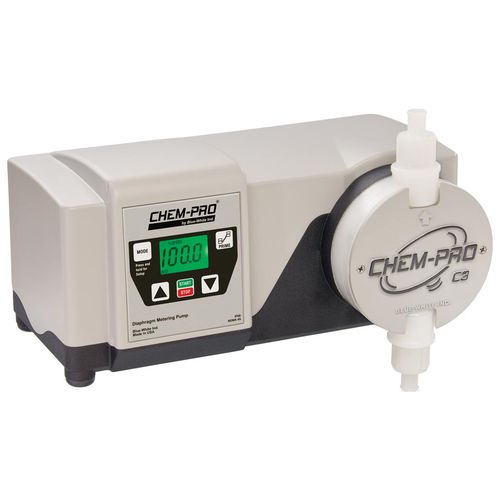

Irrigation pump CHEM-PRO C3

diaphragmhigh-pressure

Benefits of a Diaphragm Pump: Capable of high pressures and high volume outputs. Non-loss motion variable speed DC motor is powerful, quiet and energy efficient Capabilities: Feed rate resolution 0.1% Output rates to: 40 GPH (153 LPH) and pressures to: 150 PSI (10.3 bar). Communication & Interface: SCADA ready 5-30V DC open collector output loop closes while motor is energized. Profibus DPV1, Profinet RT I/O, Industrial Ethernet/IP, Modbus RTU and Modbus TCP available Signal inputs include: 4-20mA, pulse inputs, and Remote start/stop Signal outputs include: Relay (3 amp), open collector, 4-20mA (optional) Upgradeable firmware Large, intuitive control-pad Backlit LCD displays motor speed, input signal values, service and alarm status. Includes Diaphragm Failure Detection (DFD) system. Compatible with Blue-White’s Flow Verification Sensor (FVS) system Alarm relay monitors the DFD system and the FVS system. Superior Engineered Design: Protective LCD snap-on cover, (UV, in field wear and tear) Large single piece junction box with terminal block connectors inside Large PVDF, Ceramic, TFE/P double ball check valves without metal springs. Priming and degassing valve built into the pump head. Exclusive Diaflex® Single Layer PVDF diaphragm. NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure. Patents Pending: Exclusive Diaflex® Single Layer PVDF diaphragm.
