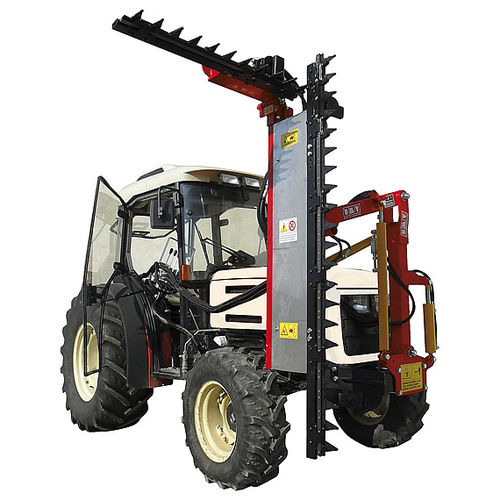

Vineyard trimming machine E600 series

tractor-mountedhydraulicsickle bar

The new B.M.V. trimming machine model “E600 Double Blade” has been developed in order to eliminate all sliding and reduce the spaces. The result has been an easier and lighter machine. The cutting part is made up by an alternative double blade mower. The trimming machines E600, in their different models are compatible with any need and kind of growing. All models are mounted in the front side of tractor. The power is taken from the hydraulic intakes of the tractor or on demand, it is possible to supply an independent hydraulic tank. All models are equipped with trolley and protections for parking. The 4 hydraulic movements for elevation, inclination, inclination correction, top inclination allow the machine to better adapt to the row. The upper articulated top can retract next to obstacles (for ex. Rows’ poles). Different optional are available, like root-gatherer and electric control. 4 hvdraulic movcmcnts: - - raisc - - inclination - - inclination correction - - top inclination The new ILWV E600 trimming machine has been studied to eliminatc ail the slidings and ta reduce ail the obstructions. The resuit is a an easier and lighter machine. The trimming machines corne in various modcls to suit ail kinds of requirements and type of Systems. Ail the models satisfy any kind of exigence and type of installation; they are ail applied in front of tractor. The power required is supplied by hydraulic sockets of the tractor or upon request a separate hydraulic control unit can be provided. Hardened Steel blades ensure top quality trimming with high cutting speeds (2000-2500) even when the tractor move s fast along. The spécial drive belt used does not require a belt tensioner.
