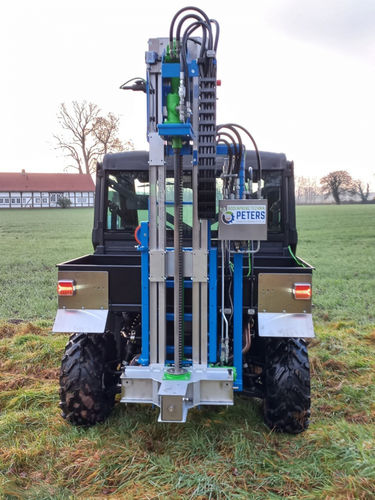

Mounted soil sampler MP-3.90

electrical conductivityhydraulically-operatedautomatic

Fully automatic soil sampling device for pulling N-min samples up to 95cm. Possibility of 3-layer separation. Without layer separation, three samples can be pulled one after the other with a maximum sampling depth of 95 cm without having to leave the driver’s seat in between for packaging. Suitable for cultivation on pickups, trailers or light vehicles. Automatic emptying and layer separation. The sampling depth (up to max. 95cm) as well as the number of horizons (up to 3) can be individually configured. Penetration speed is monitored (sensitivity adjustable). If there is too much resistance (obstacles in the soil), the process is aborted to minimize damage to the device. The sample material present in the drill rod is either discarded or assigned to the containers depending on the presetting. Very efficient, low-wear and low-maintenance, easy to use. A high-frequency hydraulic hammer mechanism was installed for professional and long-term use. Function brief description: •hitting system •The groove bar is driven into the ground with a Lifton hammer (2,200 blows/min.), turned hydraulically and pulled out again •when the auger is lifted, it is automatically emptied into the various containers •the sample material from the individual horizons gets into the corresponding sample containers by turning the drill rod.
