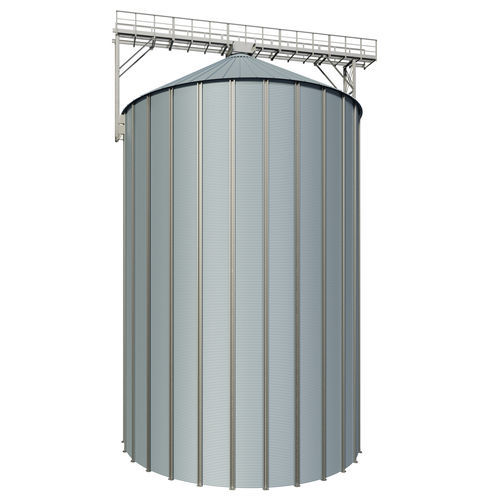

Grain silo SBE
metalflat-bottomhopper

Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 2
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 3
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 4
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 5
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 6
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 7
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 8
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 9
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 10
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 11
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 12
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 13
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 14
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 15
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 16
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 17
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 18
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 19
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 20
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 21
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 22
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 23
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 24
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 25
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 26
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 27
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 28
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 29
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 30
Grain silo - SBE - Borghi Srl - metal / flat-bottom / hopper - image - 31
Add to favorites
Compare this product

Go to the Borghi Srl website for more information

Characteristics

Application
for grain
Material
metal
Form
hopper, flat-bottom
Other characteristic
corrugated
Volume

Max.: 9,517 m³
(336,090 ft³)

Min.: 80 m³
(2,825 ft³)

Description

Our silos in corrugated sheel metal are suitable in particular as regards the stocking of granulated products, such as: grains with a specific weigh, which is inferior to 840 Kg/cu.dm. Calculus are made following Jansen' s formula conformably to A.I.S.C. and A.S.B.C. American standards, in which they meet file DIN 1055 rules. The considered accidentd loadings are: the pressure of the wind generated to 170 KmIh, the loading of the snow of 90 Kg/sq.m. and the null seismic force.Made in Italy
