Hydrostatic tractor K Series
4-cylinderwith cab3-point hitch

Hydrostatic tractor - K Series - Branson Tractors - 4-cylinder / with cab / 3-point hitch

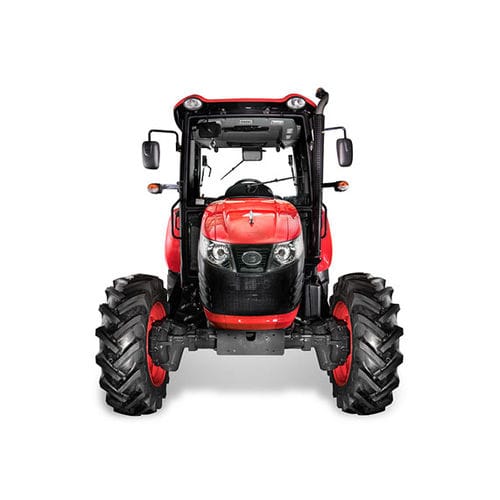

Hydrostatic tractor - K Series - Branson Tractors - 4-cylinder / with cab / 3-point hitch - image - 2

Hydrostatic tractor - K Series - Branson Tractors - 4-cylinder / with cab / 3-point hitch - image - 3

Hydrostatic tractor - K Series - Branson Tractors - 4-cylinder / with cab / 3-point hitch - image - 4

Hydrostatic tractor - K Series - Branson Tractors - 4-cylinder / with cab / 3-point hitch - image - 5

Hydrostatic tractor - K Series - Branson Tractors - 4-cylinder / with cab / 3-point hitch - image - 6

Add to favorites

Compare this product

Characteristics

Transmission

hydrostatic

Number of cylinders

4-cylinder

Other characteristic

with cab, 3-point hitch, front PTO

Engine power

74 ch
(74 hp)

Displacement

2,392 cm³
(81 US fl oz)

Wheelbase

2,200 mm
(86.6 in)

PTO speed

540 rpm, 750 rpm, 1,000 rpm
(3,392.9 rad.min-1, 4,712.4 rad.min-1, 6,283.2 rad.min-1)

Maximum speed

Max.: 32.7 km/h
(20.3 mph)

Min.: 0.8 km/h
(0.5 mph)

Fuel tank capacity

90 l
(23.8 gal)

Total length

4,117 mm
(162.1 in)

Total height

2,605 mm, 2,783 mm
(102.6 in, 109.6 in)

Weight

2,666 kg, 2,955 kg
(5,877.5 lb, 6,514.7 lb)

Description

.Openable rear window .3 Speed PTO .Adjustable rim .Flat deck .Fuel tank located below the cabin allows easy filling .360º cabin visibility .New bonnet design for better heat release .Designed for mounting front PTO & Hitch BENEFITS A powerful turbo-diesel 4 cylinder engine under the rear-hinged red bonnet : in keeping with Branson's habit of using good components, the 3.4-litre Branson engine wears a Garret turbo and delivers 78hp at 2,500 RPM. Putting the power onto the dirt is simple to use synchro power shuttle, driving all four wheels. Provides more strength to enhance rear work. Power shuttle lever enables easy forward and reverse shifting. Powerful climate control system focuses on delivering to the operator pleasant work conditions. Easy access to the button type light controller located on the inner pillar of cab. Electro - hydraulic controls are ergonomically designed for convenient operation. 3PL lift arm control buttons are positioned on the rear fender and LED rear light is installed.
