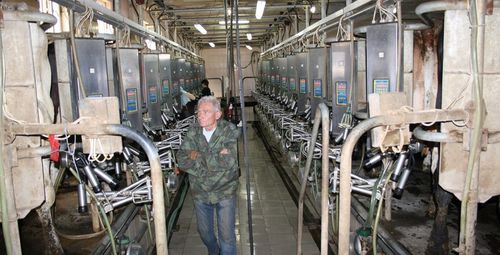

Cow milking parlour MEH

herringbone

Milking parlour”Herringbone” is made on the basis of milking time economy concept, minimal stall area, ideal conditions for milkmaid and exceptionally careful process of cow milking. Module construction allows supplying milking installation at size range from 2x4 to 2x36. It is possible to design a one-row variant. Cows are placed at an angle of 30˚, which provides an ideal access to the udder and good inspection while maintenance. Gates with a mechanical gear, which are managed from every working place with a press of a button, provide fast cow changing. Robotization of milker working place provides the minimum amount of time and labour for servicing cows. When installing the milking device on the nipple it is supported in weightless condition that is why milker doesn’t need to put physical efforts. The process of milking each cow is regulated automatically and individually on the basis of feedback. Unique manipulator that has no analogue, ideally fasten the milking device on udder, excludes slipping down of milking glasses and provides full milking with average speed up to 6 l\min. Milking installation has several levels of automation, which is possible to grow in the exploit process. Milking line consists of stainless polished pipe with the inner diameter 60 mm, with carrying speed 5 000 liters of milk per hour. Milk is collected in the milk tank which is made of heat-resistant glass (crystal) with the capacity of 50 liters; is has two milk pumps with carrying capacity 85 l/hour each. One pump works for milking, the other one works for washing or in case the first pump fails. Pumps work automatically only in case there is milk or detergent in the milk tank.
