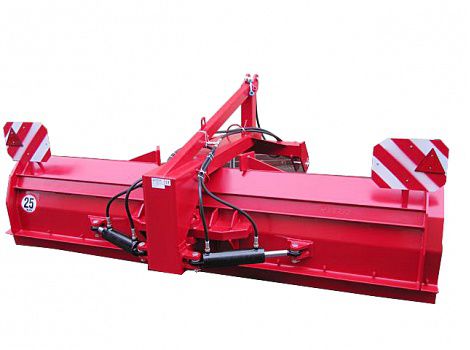

Straight snow blade RA/ZAD/03

with hydraulic adjustmenton 3-point tractor front linkage

New type of blade designed for winter/summer maintenance of roads and paved areas. The blade is used to remove fresh snow. In summer, it can be used to covering of ditches and bulldozing of soil and stones. The machine is designed as a tractor attachment. The blade is connected to the hydraulic circuit of the tractor, which controls the blade rotation (left-to-right). The blade control is from the tractor cab. The robust construction is welded and reinforced with thickened material, making it resistant to bending, cracking and other damage. The steel edge of blade is replaceable and can be replaced with rubber blade. The rubber blade is suitable for maintenance of the paving tiles and surfaces with a larger number of bollards. TECHNICAL PARAMETERS Type: - Back, Hydraulicly rotating Sheet metal thickness: - 8 mm Machine height: - 1 200 mm Working area width: - 2 600 m Shovel height : - 600 m Rotation angle: - up to 30 degrees Weight: - 515 kg Rotation drive: - Hydraulic circuit of tractor Hinge type: - II - as specified by the customer Standard edge: - steel 15x180x3000
