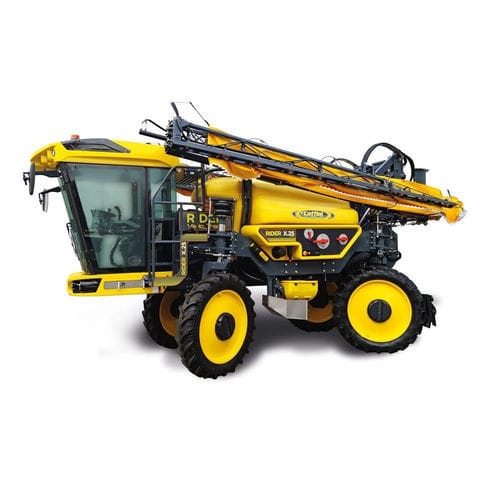

Self-propelled sprayer Rider Vario_Track

hydraulicfolding armspneumatic

The Rider Vario-Track is a lightweight, high specification self-propelled sprayer. It is one of the only models of its size to feature an in cab hydraulically adjustable track width between 150 cm and 300 cm. As standard, the machine also comes with an ISOBUS based computer control system allowing for the fitment of a wide selection of cost and time saving options. Description Heavy duty steel frame, painted after cataphoresis treatment Engine Deutz 100 kW (136 Hp) 4 cylinders – AdBlue – Stage 4 and 5 Hydrostatic transmission: 4 engine wheels with hydrostatic engines and RTM system Bosch-Rexroth •4 steering wheels, with 3 steering settings •Pneumatic suspensions independent on the 4 wheels •VARIO TRACK: adjustable track from the cabin from 1500 to 3000 mm (intermediate 1600-1800-2000-2100-2250-2500-2700-2800 mm) •Ground clearance 1250 mm, with standard wheels •Tyres: 270/95 R36’’ •Dumped and pressurized cabin with activated carbon filters Cat. 4 and air conditioned •Pneumatic damped seat •Ergonomic armrest, 7’’ dashboard, adjustable steering column, electric adjustable rearview mirrors and hydraulic stepladder •Rear camera synchronized with reverse gear •Hydraulic boom HBM-HBL painted after cataphoresis with hydraulic lift on parallelogram, damped •Elektroil: electrohydraulic oil distributor for boom movements •Automatic spraying Computer IsoBus •Hub Service: centralized controls of operation •Premixer hopper with parallelogram lifting, canister rinsing nozzle •Optional air sleeve AIR WINGS for 18, 20, 21, 24 m booms
