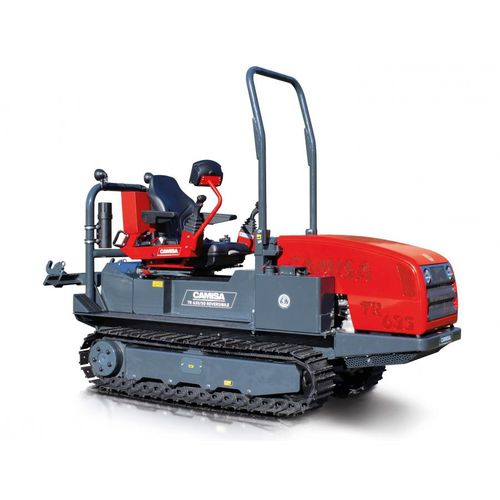

Crawler minidumper TR 635/50

dieselelectric

Engine - Perkins 404.22 diesel 4 cylinders (Hp 50 / Kw 37,3) water cooled Start - electric Dashboard - with revolution-counter, hour-counter, km-counter and service lights Transmission - hydrostatic with pistons pumps Hydraulic motors - wheel motors Poclain Brakes - negative Controls - joystick with servo control and speed governor Drive seat - reversible and tip-up drive seat Reverser - automatic drive inverter P.t.o - 540 rev/min with bath-oil reducer and electro-magnetic control Safety roll bar - APPROVED Working lights - and 12 volt electric socket Guide roller - in cast iron mounted on bearings with protection caps Tracks - rubber or steel Spring tensioner - and grease piston for the tracks Heat exchanger - combined water-hydraulic-oil Hoist - theree points lift with depth governor Three points lift - hydraulic with block valve 10 hydraulic connections - double or simple effect Speed - from 0 to 7 Km/h by gradual change Overall dimensions - mm. 2900x1000x2100 mm. 2900x900x2100 (narrow version) Weight - Kg. 1500/2200 Treated on all metallic parts - powder painting Optionals Front weights Kg. 20 Kit electronic speed control
