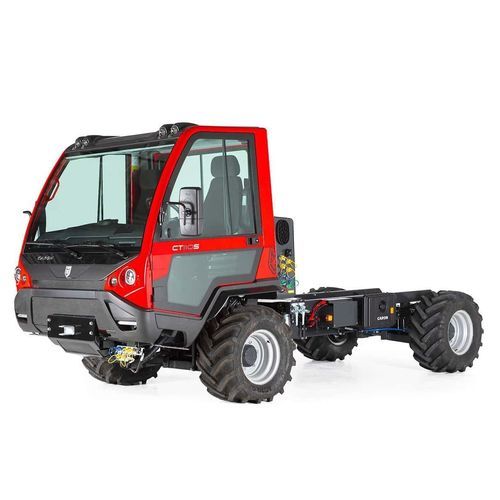

2-person utility vehicle CT-S series

diesel4x4with dump bed

Designed for the most demanding operators, the CT-S Series combines the best off-road performance with excellent on-road driving. The transporter is equipped with the CHS system on all four wheels: hydro-pneumatic double wishbone suspension, self-levelling, and lockable. The CT-S Series has an approved total weight of 10,000 kg, which allows it to transport loads or equipment up to 6,700 kg combined with a maximum towing capacity of 14,000 kg. The engines are all latest-generation 4-cylinder common-rail engines delivering power from 75 to 136 hp. Approved as agricultural tractors, with maximum speeds up to 40, 50, or 60 km/h, they are also available in 4-wheel steering versions, and with Agilematic automatic transmission, designed and built in-house by Caron. The Universal Version of the CT-S Series transporter ensures very wide customisation options and maximum versatility in fittings, satisfying the needs of diverse sectors. In its basic set-up, it has a universal chassis and quick couplings for fitted equipment. Choice of 3 wheelbase variants 2600, 2800, and 3000 mm, independent central PTO at 540/1000 rpm, and independent PTOs with upper and/or lower output on the rear axle. Various hydraulic versions are available for operating different equipment, with lever or joystick controls, and outlets in front of and behind the cab. The Universal Version of the CT-S Series transporter can also be supplied with the three-side dumping body on a demountable subchassis.
