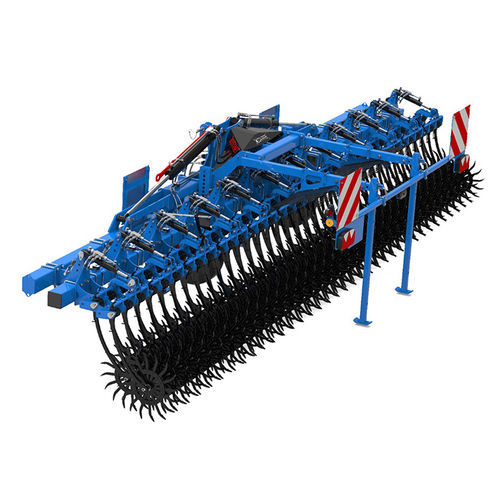

Folding rotary hoe ROTANET CONTROL

ROTANET CONTROL allows very accurately adjusting the hoe pressure applied to the ground The module comprises six hoes mounted on separate arms. The pressure on the star wheels is adjusted from the cab. The hoe frame’s wide spread over the ground ensures very accurate working and a pressure level that is always constant. THE FRAME •Three-point hitch between No. 3 couplings – Pin Nos. 2/3 •A dynamic single piece square section 120×5 mm beam welded chassis •Secondary square section 120×5 mm beam attached with a removable bracket •Folding articulation with thick polyamide ring. •Hydraulically folds to 3 metres with dual hydraulic and mechanical safety mechanisms •Pair of wheels with 10-ply 535×168 mm tyres with track adjustable from 1.50 to 2.15 metres •Anti-spray grille •Four parking stands •Road light and signals included WELL FINISHED WORK •Hoe ground pressure can be adjusted from the tractor cab •Allows working the full width, a row or between rows •Maximum efficiency thanks to the original Yetter wheel that has proven itself well over more than 50 years
