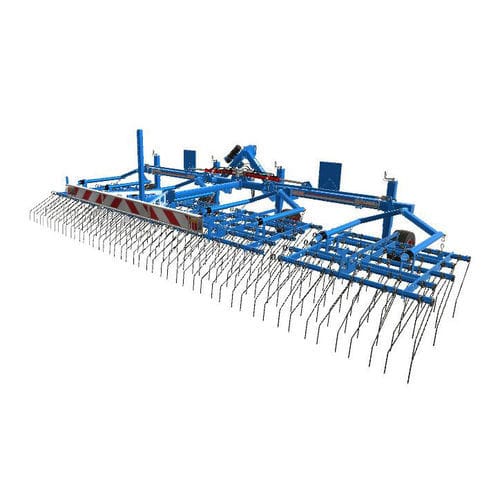

Spring tine harrow SARCLERSE

folding

Folding at 3m to drive with serenity Standard or scissors folding depending on width (scissors from 9m). Sarclerse are equipped of double tines adapted to your crops and fixed by R clips for a tine quick change. The mounting system eliminates play (constant elastic pressure mounting) between the tine tube and the double tine. The clip is held tightly against the tube due to the constant tine pressure, which guarantees that the tines are well held. Spacing between tines : 25mm. Compact Ø 7mm tines (L = 430 mm or 530 mm) or Ø 8 mm standard (L = 530 mm) for a pasture use. Manual or hydraulic adjustment of the tines aggressiveness. THE FRAME •3 point hitch with anti-rotation pin category 2/3 •Welded single piece frame – tube 100×5 mm and 100×8 mm •Folding articulation with thick polyamide ring. •Depth control wheels 16×6.50-8 (Ø 410x170mm) up to 7.50m and 18.5×8.50-8 (Ø460x220mm) from 9m •Ø 7mm tines length 430 or 530mm or Ø 8mm tines length 530mm •Road light and signals included
