Powershuttle tractor Farmall 100A series
4-cylindercompact3-point hitch

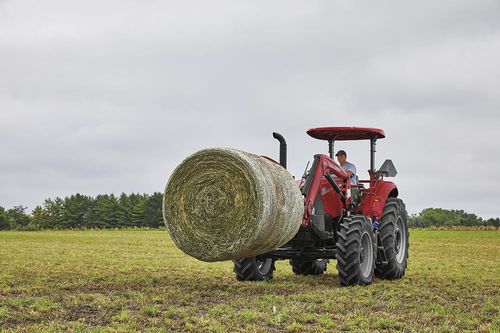

Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 2
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 3
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 4
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 5
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 6
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 7
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 8
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 9
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 10
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 11
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 12
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 13
Powershuttle tractor - Farmall 100A series - CASE IH - 4-cylinder / compact / 3-point hitch - image - 14
Add to favorites
Compare this product


Characteristics

Transmission
powershuttle
Number of cylinders
4-cylinder
Other characteristic
compact, with cab, 3-point hitch, front PTO, with front-loader
Engine power

110 ch, 120 ch, 130 ch, 140 ch
(110 hp, 120 hp, 130 hp, 140 hp)

Displacement

5 l
(1 gal)

Wheelbase

2,432 mm, 2,640 mm
(95.7 in, 103.9 in)

PTO speed

540 rpm, 1,000 rpm
(3,392.9 rad.min-1, 6,283.2 rad.min-1)

Fuel tank capacity

215 l
(56.8 gal)

Total length

4,690 mm
(184.6 in)

Total height

2,800 mm
(110.2 in)

Weight

4,520 kg, 4,780 kg, 4,830 kg
(9,964.9 lb, 10,538.1 lb, 10,648.3 lb)

Description

A Tractor that Multi-Tasks as Well as You Do Case IH Farmall 100A series tractors are tough, reliable, remarkably versatile and an excellent value. With four models available in cab or non-cab versions and two-wheel drive or optional mechanical front-wheel drive configurations, you’re sure to find one that’s right for your operation and budget. ENGINE All the Horsepower You Need with No Regeneration Equipped with a 4-cylinder 4.5 liter FPT engine, these new electronically-controlled and Tier 4 B/Final compliant engines provide operators with faster throttle response, improved cold weather starting, increased fuel efficiency, and quieter operation. Unlike some competitive utility tractors, Farmall 100A series tractors do not require a diesel particulate filter in order to avoid downtime and increase productivity with no regeneration. Smooth Shifting Options to Match Your Needs Choose from three transmission options to best suit your operation: •8×8 clutchless power shuttle (standard) •8×8 Synchro mechanical option with mechanical reverser •16×8 power shuttle with hi-lo gear selection in every range OPERATOR ENVIRONMENT Comforts to Make Long Days Seem Shorter Hundreds of hours of research go into making long days seem shorter, controls seem more natural and chores seem less challenging in Case IH equipment. Farmall 100A series tractors continue the long-standing Farmall commitment, putting a high priority on operator comfort and productivity.
