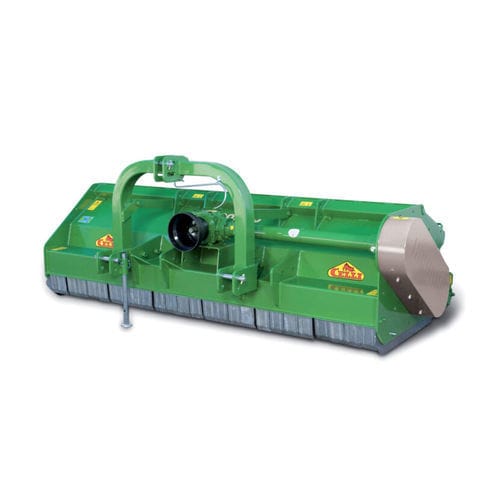

Mounted mulcher SCORPIO/F, SUPER SCORPIO/Fhammergrass48 hammers
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- hammer
- Applications
- grass
- Number of hammers
- 48 hammers, 56 hammers, 44 hammers
- Number of knives
- 64 knives, 72 knives
- Other characteristic
- PTO-driven, hydraulic, for tractors
- Cutting width
200 cm, 225 cm, 250 cm, 280 cm, 320 cm
(78.74 in, 88.58 in, 98.43 in, 110.24 in, 125.98 in)- Rotational speed
540 rpm
(3,393 rad.min-1)- Tractor power
65 ch, 70 ch, 75 ch, 110 ch, 120 ch
(65 hp, 70 hp, 75 hp, 110 hp, 120 hp)- Weight
Max.: 1,362 kg
(3,002.7 lb)Min.: 793 kg
(1,748.27 lb)
Description
Ideal for:
Working with large tractors · Mulching grass and shoots · Mulching shoots and cutting wood · Mulching stalks and plant residue · Cutting grass
SCORPIO/F Technical specifications and standard equipment
From mod. 200 to mod. 250
•4 belt transmission
•Double shielded box frame made of very thick steel sheet
•Fixed 3-point hitch, 2nd category, with two operating positions: central or 25 cm off-center
•Fixed front counter-blades
•Removable and replaceable upper counter-blades
•Gearbox with freewheel safety device
•Rear cover that can be opened for maintenance operations
•Rotor (pipe Ø 194 mm) with 10 mm Y blades (1) (Ø 620 mm)
•Well protected rotor supports
•Roller or wheels
•Resting foot
•Side safety guards
•Drive shaft without safety device
