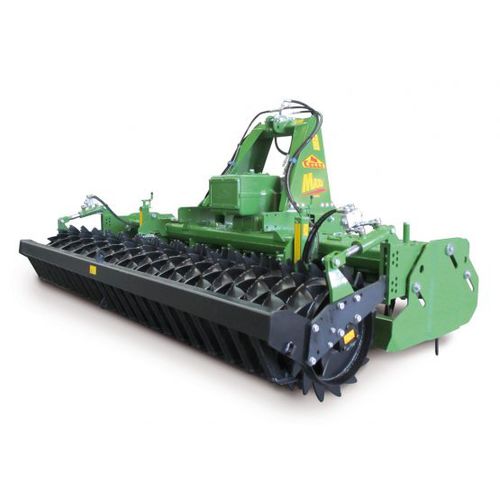

Power harrow MAXI

with roller

The MAXI is Celli's flagship rotary harrow, used for tractors with power ranges up to 250 HP. The typical Celli technical solution using a box frame in thick welded sheet métal was applied on this model: this type of frame ensures maximum rigidity, providing perfect alignment of the transmission parts in ail working conditions. Compared to other models already in the catalog, the MAXI présents numerous innovations and improvements: • - Robust transmission parts (large diameter rotors and cemented gears held in place by strong self-locking rings); • - Lower area totally redesigned for better wear résistance and better ground flow through the machine (double oil seals + outer labyrinth, external support in thick forged Steel); • - Newly conceived bottom stone protector devices (wedges welded on the frame + removable full fai ring). Technical spécifications and standard equipment • - maximum horsepower: 250 HP (183 KW) • - PTO: 2-speed gearbox for 1000 rpm • - Cat. 2 3-point hitch • - swinging front hitches • - roller with hydraulic adjustment • - rear leveling bar, adjustment with threaded bar • - round tine rotor to avoid jamming • - tines 100x18x320 mm (working depth about 33 cm with low power absorption) • - counterplates for tine locking • - mobile side plates • - drive shaft with automatic safety device S.10 L = 1053 mm on tractor side 1 "3/8 Z = 21 • - removable safety devices
