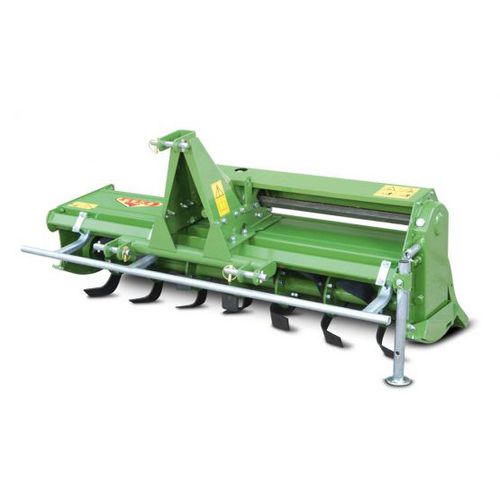

Rotary tiller AG

An important feature of side shift rotary tillers is that they till soil both from the center and the sides with respect to the centerline of the tractor. This allows operation in areas where the tractor can not reach due to its height (for example, under trees or near greenhouse walls). The gearbox always remains in the center so that the drive shaft always opérâtes in a straight position, while the whole machine body shifts sideways. Technical spécifications and standard equipment • - maximum horsepower: 30 HP (22 KW) • - side-shift: manual • - PTO: 540 rpm 1 speed: 205 rpm • - side transmission: chain • - c-shaped blades: 60*6 mm (4 for each flange, with the side blades leaning outwards) • - max. working depth 15 cm • - foot stand • - drive shaft without safety guard S.4 L = 832 mm on tractor side 1 "3/8 Z = 6 • - removable safety devices On request • - Rotor with 6 blades per flange • - Counterplates • - Side shift with threaded bar • - Set of 2 front wheels • - Extended upper and lower 3-point hitch - fixed • - Extended upper and lower 3-point hitch - removable • - Drive shaft with shear boit • - Drive shaft with clutch
