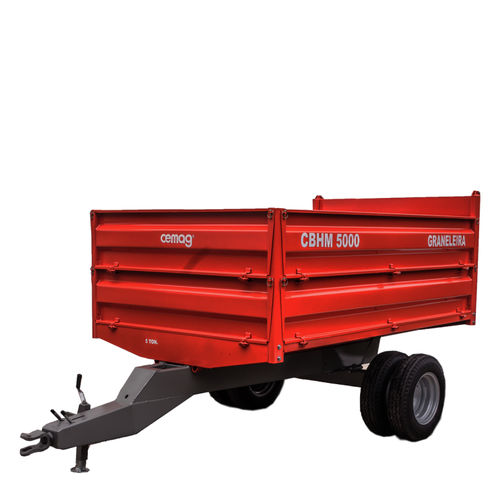

Tipping trailer CBHM 5000single-axlegrain5 ton
Add to favorites
Compare this product
Characteristics
- Construction
- tipping
- Number of axles
- single-axle
- Application
- grain
- Payload
- 5 ton
- Empty weight
900 kg
(1,984.2 lb)- Recommended power
60 ch
(60 hp)- Load volume
5 m³
(176.573 ft³)- Loading case lenght
3 m
(9'10" )- Loading case width
1.8 m
(5'10" )- Loading case hight
0.9 m
(2'11" )
Description
REAR DOOR UNLOCKING THROUGH EASILY ADJUSTABLE PULL ROD
SEVERAL MOUNTING POSITIONS, REGULATING THE WEIGHT OVER THE TRACTOR
SOLID FRAME INTEGRATED TO THE LIFT
FORGED HITCH- MORE RESISTANCE
QUICK COUPLING HOSES
WHEEL HUBS WITH AUTOMOTIVE STANDARDS
DOUBLE WHEELSET MORE STABILITY
TUBULAR AXLES MORE RESISTANCE
TECHNICAL SPECIFICATIONS
TOTAL LENGTH:4,30m
TOTAL HEIGHT:1,95m
EXTERNAL GAUGE LENGTH:2,00m
TILTING ANGLE:45°
WHEEL:5,5 x 16" 6F RD
TIRE:(04) 6,5 x 16" 6L
OPTIONALS:Spring and brakes, Tires, 1 tandem axle - excelent stability, Rear cap with flaps to guide the coffee drop
CATEGORY:Coffee trailer
WHEEL SYSTEM:Tandem
