Mouldboard plow AR 300 REV
mountedrotary

mouldboard plow
mouldboard plow
mouldboard plow
mouldboard plow
mouldboard plow
mouldboard plow
mouldboard plow
Add to favorites
Compare this product


Characteristics

Form
mouldboard
Mobility
mounted
Other characteristic
rotary
Width

518 mm
(20.39 in)

Tractor power

Max.: 18 ch
(18 hp)

Min.: 8 ch
(8 hp)

Description

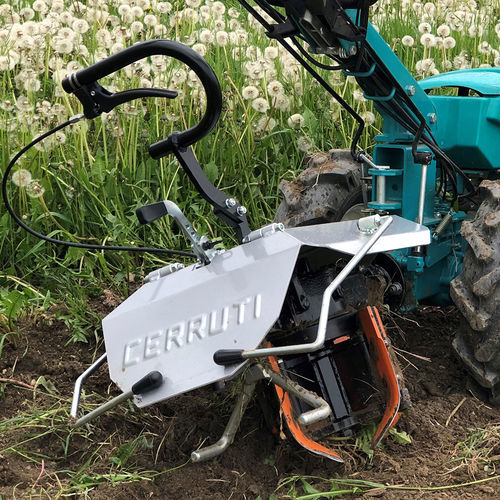

Cerruti Srl introduces the new bidirectional rotating plow for walking tractors, model AR 300 REV, applicable to any type of walking tractor, in the rear position. A distinctive feature of this tool is the possibility of reversing the direction of rotation, with the simple movement of a lever. The plow, robust but at the same time very easy to handle, also offers the possibility of working both vertically and in an inclined position, in each direction of work, with inclinations of 19 ° and 38 °. The rotor diameter is 300 mm, while the working depth is about 25-30 cm. TIME SAVING IT ALLOWS THE OPERATOR TO WORK THE SOIL BOTH FORWARD AND BACKWARD. TECHNICAL FEATURES Applicable to any type of walking tractor Possibility of reversing the rotation to work both forward and return Minimum and maximum height of the PTO: 225-340 mm Minimum and maximum power required: 8/18 hp Maximum rotor speed: 300 rpm Direction of rotation: clockwise and counterclockwise Rotor diameter: 300 mm Weight: 50 kg
