Mounted mower TR BS 3P L series
flailPTO-drivengrass

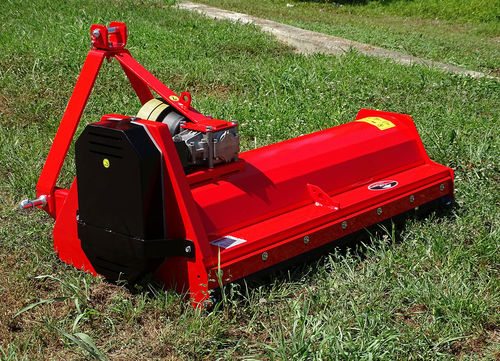

Mounted mower - TR BS 3P L series - CERRUTI s.r.l. - flail / PTO-driven / grass

Mounted mower - TR BS 3P L series - CERRUTI s.r.l. - flail / PTO-driven / grass - image - 2

Mounted mower - TR BS 3P L series - CERRUTI s.r.l. - flail / PTO-driven / grass - image - 3

Mounted mower - TR BS 3P L series - CERRUTI s.r.l. - flail / PTO-driven / grass - image - 4

Add to favorites

Compare this product

Characteristics

Mounting

mounted

Technology

flail

Other characteristic

PTO-driven, grass, for tractors

Working width

1,000 mm, 1,026 mm, 1,222 mm, 1,430 mm
(39.37 in, 40.39 in, 48.11 in, 56.3 in)

Power required

Min.: 12 ch
(12 hp)

Max.: 30 ch
(30 hp)

PTO speed

540 rpm, 1,000 rpm
(3,392.9 rad.min-1, 6,283.2 rad.min-1)

Weight

120 kg, 162 kg, 175 kg, 185 kg
(264.6 lb, 357.1 lb, 385.8 lb, 407.9 lb)

Description

F Adjustable pivoting wheels without supporting roller (for HD) G Adjustable pivoting wheels with supporting roller (for HD) C Set of hammers instead of Y blades for TR-BS and TR-HD 1000 C Set of hammers instead of Y blades for TR-HD 1200 C Set of hammers instead of Y blades for TR-HD 1600 Triangle attachment cat 0 I Supporting sledges Cardan transmission with SB torque limiters (standard) Cardan transmission balanced for PTO with more than 1000 rpm Reducing gearbox for 2000 rpm PTOs A Adjustable front pivoting wheels, without supporting roller (for BS) B Adjustable front pivoting wheels, with supporting roller (for BS) TECHNICAL FEATURES Adaptable to small tractors, grass mowers and tool carriers, with powers between 12 and 30 Hp Front and rear application, with 3 point attachment cat . 1 with PTO between 540 and 1000 rpm. Adjustable grass cutting height, with rear supporting roller. Rotor with Y blades or (on request) with hammers, balanced according to ISO G16. Transmission gearbox with anti-dragging free wheel.
