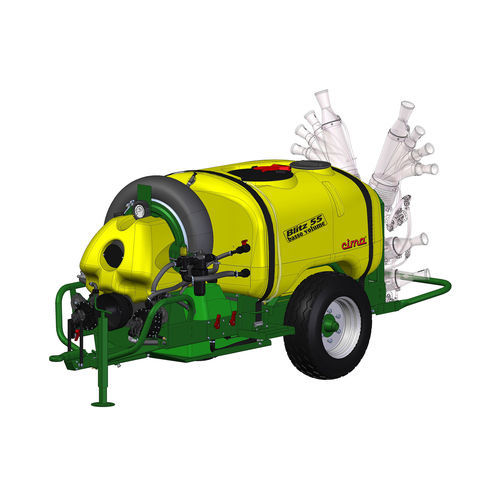

Orchard sprayer Blitz 55

vineyardlow volumemanual

The trailed low volume sprayer model Blitz 55, with pneumatic atomization based on the "Venturi Tube" principle, performs chemical treatments with a low volume of water. With its strong structure and high performance, this model guarantees a very good production on large vineyard and orchard crop extensions. Maximum performance with low operating costs and low maintenance. Specifications - Equipment ONLY FOR EC REGULATION ■ 1000-1500 and 2000lt. main tank in polyethylene equipped with gratuated level indicator ■ Polyethylene spray-line rinsing tank placed below the main tank (gives the machine an excellent stability) ■ 30lt. hand-washing tank ■ Hydraulic pre-mixer incorporated within the basket filter ■ Two agitation systems, liquid and air ■ C.I.M.A.'S centrifugal pump (no diaphrams or valves) made of anticorrosive material and requiring no maintenance. ■ CIMA additional agitation pump (no diaphrams or valves) made of anticorrosive material, standard supplied on the 1500/2000 lt.tank models. ■ Pressure regulator with manual control and Ø 100mm pressure gauge (0÷6 atm) ■ Spraying ON/OFF control by remote control electro-valves from tractor seat ■ Rotating calibration discs, 15 positions - delivery from 100 to 5000 l/h ■ Steel high pressure radial fan with fan disengagement, polyethylene fan housing ■ Poly-V belt drive with automatic tensioner. ■ Overrunning clutch – safety stop device in the event the PTO is suddenly stopped ■ Steel frame, trail- eye drawbar adjustable in lenght and height, electrostatic painted with polyester powder. ■ Wheel-hubs adjustable in width and height, electrostatic painted with polyester powder
