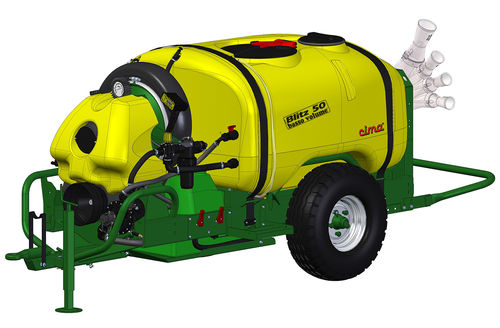

Towed sprayer Blitz 50

for viticulturefor arboriculturehydraulic

The trailed low volume sprayer model Blitz 50, with pneumatic atomization based on the "Venturi Tube" principle, performs chemical treatments with a low volume of water. Notwithstanding it does not require high power tractors, this sprayer is the best choice for spraying large vineyard extensions.Maximum performance with low operating costs and low maintenance. Specifications - Equipment ONLY FOR EC REGULATION ■ 800-1000 and 1500lt. main tank in polyethylene equipped with gratuated level indicator ■ Polyethylene spray-line rinsing tank placed below the main tank (gives the machine an excellent stability) ■ 30lt. hand-washing tank ■ Hydraulic pre-mixer incorporated within the basket filter ■ Two agitation systems, liquid and air ■ C.I.M.A.'S centrifugal pump (no diaphrams or valves) made of anticorrosive material and requiring no maintenance. ■ CIMA additional agitation pump (no diaphrams or valves) made of anticorrosive material, standard supplied on the 1500 lt.tank models. ■ Pressure regulator with manual control and Ø 100mm pressure gauge (0÷6 atm) ■ Spraying ON/OFF control by remote control electro-valves from tractor seat ■ Rotating calibration discs, 15 positions - delivery from 70 to 3400 l/h ■ Steel high pressure radial fan with fan disengagement, polyethylene fan housing ■ Poly-V belt drive with automatic tensioner. ■ Overrunning clutch – safety stop device in the event the PTO is suddenly stopped ■ Steel frame, trail- eye drawbar adjustable in lenght and height, electrostatic painted with polyester powder. ■ Wheel-hubs adjustable in width and height, electrostatic painted with polyester powder
