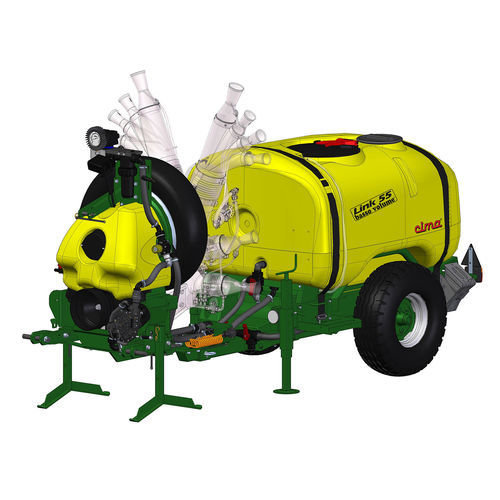

Viticulture sprayer Link 55 series

for arboriculturelow volumemanual

The articulated low volume sprayer model Link 55, with pneumatic atomization based on the "Venturi Tube" principle, performs chemical treatments with a low volume of water. The fan group is mounted on the 3-point hitch frame and the distribution sprayhead is directly fitted on the fan group. The articulated joint to which the trailer with the tank is connected allows the sprayer to turn with a short turning radius and without a constant velocity cardan shaft. Duly adjusted, the trailer wheels pass in the same path as the tractor. Maximum performance with low operating costs and low maintenance. Specifications - Equipment ONLY FOR EC REGULATION ■ 800-1000 and 1500lt. main tank in polyethylene equipped with gratuated level indicator ■ Polyethylene spray-line rinsing tank placed below the main tank (gives the machine an excellent stability) ■ 30lt. hand-washing tank ■ Hydraulic pre-mixer incorporated within the basket filter ■ Two agitation systems, liquid and air ■ C.I.M.A.'S centrifugal pump (no diaphrams or valves) made of anticorrosive material and requiring no maintenance. ■ CIMA additional agitation pump (no diaphrams or valves) made of anticorrosive material, standard supplied on the 1500 lt.tank models. ■ Pressure regulator with manual control and Ø 100mm pressure gauge (0÷6 atm) ■ Spraying ON/OFF control by remote control electro-valves from tractor seat ■ Rotating calibration discs, 15 positions - delivery from 100 to 5000 l/h ■ Steel high pressure radial fan with fan disengagement, polyethylene fan housing ■ Poly-V belt drive with automatic tensioner.
