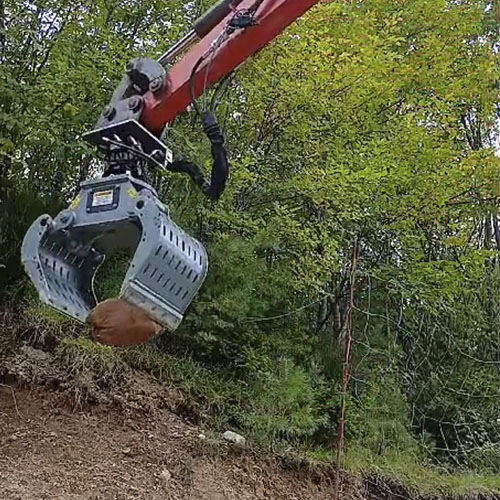

Forestry log grapple G 90
agriculturalfor mini excavatorsfor excavators

Forestry log grapple - G 90 - CM SRL - agricultural / for mini excavators / for excavators
Forestry log grapple - G 90 - CM SRL - agricultural / for mini excavators / for excavators
Forestry log grapple - G 90 - CM SRL - agricultural / for mini excavators / for excavators - image - 2
Forestry log grapple - G 90 - CM SRL - agricultural / for mini excavators / for excavators - image - 3
Forestry log grapple - G 90 - CM SRL - agricultural / for mini excavators / for excavators - image - 4
Forestry log grapple - G 90 - CM SRL - agricultural / for mini excavators / for excavators - image - 5
Add to favorites
Compare this product

Go to the CM SRL website for more information

Characteristics

Applications
forestry, agricultural
Mounting
for excavators, for mini excavators
Options
handling, versatile

Description

Sorting grapple G90 for sorting materials on construction sites, in forestry, landfills, and scrapyards, also suitable for small/medium size demolition. TECHNICAL INFORMATION For excavators from 1,5 to 3,5 tons Capacity (closed claws) 0,07 m3 Weight 110 kg Rotation 360 ° n. 1 cylinder n. 1 motor for rotation Oil pressure(rotation) 120 bar Oil flow MIN/MAX (rotation) 5 ÷ 10 l/min Oil pressure (opening/closing) 0 ÷ 200 bar Oil flow rate (opening/closing) 20 l/min Dimensions: 850x425x800 mm
