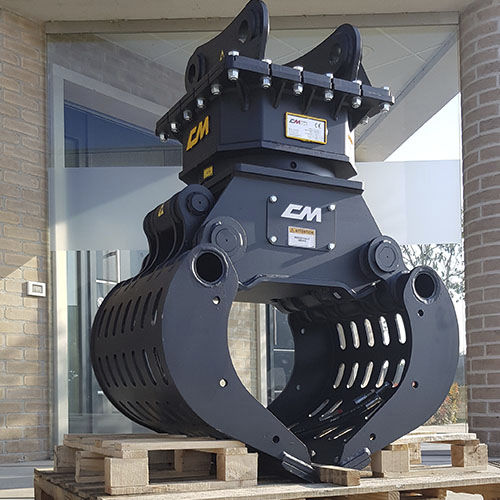

Forestry log grapple G 180
agriculturalfor mini excavatorsfor excavators

Forestry log grapple - G 180 - CM SRL - agricultural / for mini excavators / for excavators
Forestry log grapple - G 180 - CM SRL - agricultural / for mini excavators / for excavators
Forestry log grapple - G 180 - CM SRL - agricultural / for mini excavators / for excavators - image - 2
Forestry log grapple - G 180 - CM SRL - agricultural / for mini excavators / for excavators - image - 3
Forestry log grapple - G 180 - CM SRL - agricultural / for mini excavators / for excavators - image - 4
Forestry log grapple - G 180 - CM SRL - agricultural / for mini excavators / for excavators - image - 5
Forestry log grapple - G 180 - CM SRL - agricultural / for mini excavators / for excavators - image - 6
Add to favorites
Compare this product
Go to the CM SRL website for more information

Characteristics

Applications
forestry, agricultural
Mounting
for excavators, for mini excavators
Options
handling, versatile

Description

G180 Sorting Grapple for sorting materials on construction sites, in forestry, landfills and scrap yards. It is also suitable for small and medium-sized demolitions. TECHNICAL INFORMATION For excavators from 10 to 15 ton Capacity (claws closed) 0.46 m3 Weight 1000 kg 360° rotation no. 1 cylinder no. 1 rotation motor Oil pressure (rotation) 150 bar MIN/MAX oil flow (rotation) 20 ÷ 40 l/min Oil pressure (opening/closing) 300 ÷ 400 bar Oil flow (opening/closing) 70 l/min Dimensions: 1700x800x1050 mm

VIDEO

Catalogs

G SERIES
G SERIES
2 Pages

Exhibitions

Meet this supplier at the following exhibition(s):

Bauma 2025
Bauma 2025

7-13 Apr 2025 Munich (Germany)

  • More information
    Go to the CM SRL website for more information

    Other CM SRL products

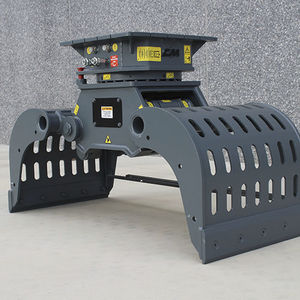

    Hydraulic grapple
