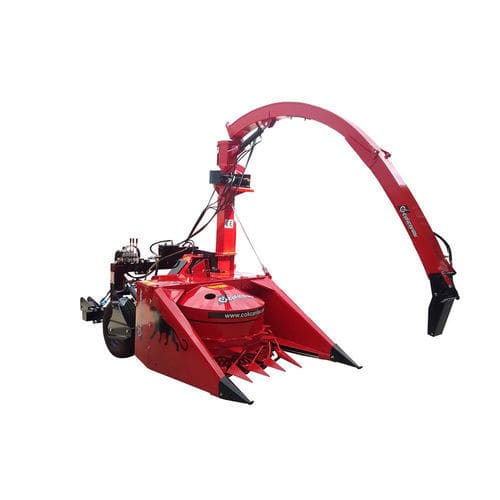

Towed forage harvester TURBO 1250

corn

The machine can harvest without tending the rows thanks to the 1.25 meter wide cutter and feeder drum. One of the most important features of the machine is that it can make fewer turns by opening a path in the middle of the field thanks to the flexible chassis design and can reduce fuel consumption. The cutter and feeder drum cut the corn and transfer it to the feeder unit. The feeder unit provides the best quality shredding by feeding the fan with shredder blades at the right angle. The fan with 12 specially hardened blades rotates at approximately 1400 rpm. There are two feeder drums and two pressure drums that ensure the corn goes to the shredder fan. One of the pressure drums has a pressure spring and is serrated. Technical Specifications Length: 2930mm Height: 3900mm Weight: 1350 kg Tire Size: 165/80r13 Number of Blades: 12 Pieces Capacity: 52 tons/hour Cutting from the Base: 4/6 cm Chimney Rotation Angle: 360 Degrees Chimney Length: 4800mm Chimney System: Hydraulic
