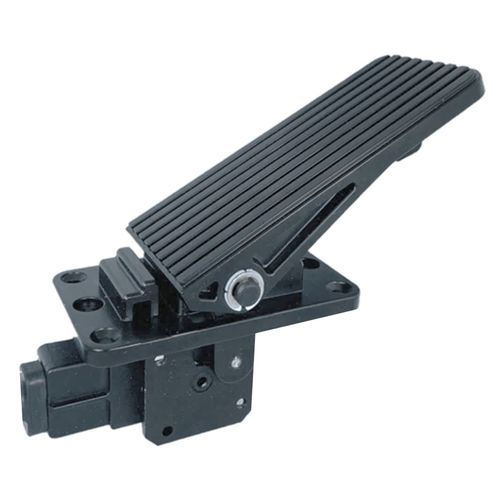

Electronic foot-switch MTF1

throttlefloor mountedCANbus

The floor-mounted pedal is composed of a baseplate for mounting in the passenger and a pre-fitted pedal plate (aluminum ADC12, black finish). Two return springs are used to replicate the pedal forces and direction-dependent hysteresis; twin return springs are used for added safety. Pedal position feedback is provided by a contactless sensor connected to either an analog or a PWM (pulse width modulated) signal circuit, depending on the variant. The no-load state can be detected either by an optocoupler or mechanically via a microswitch, according to the application.
