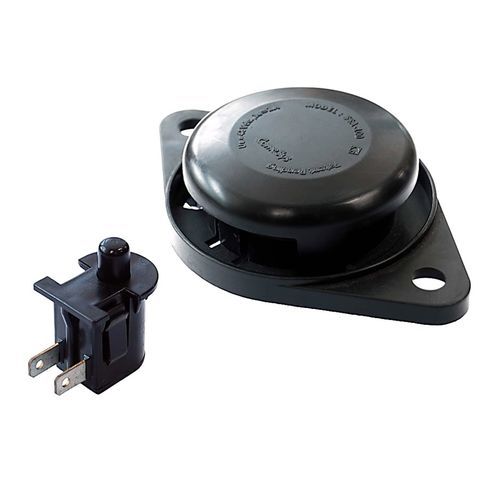

Push-button switch

IP65

Seat switch is utilized to sense operator presence ; when a seated operator compresses the seat form, the seat is actuated. Features/Benefits: Designed to be highly reliable in rugged environments. Over voltage & reverse polarity Protected. UV stable & fuel resistant Switch Position : 1~3.5mm CE mark No. CA13P3124 Patent No. 10-1307840 Part No. 10-1307846 RoHS compliant TYPICAL SPECIFICATIONS Electronics Seal Integrity: IP65 Type of Switch: Push Switch The switch operating location is 1mm~3.8mm Electrical Rating: ​5A@ 12~14Vdc Mechanical Travel Distance: 10mm +/- 1mm Spring Force: Initial Load: 65gf(MIN),Full Load : 130gf(MAX) Connection Effort - Up to 4.5Kg Per Terminal. Environment Operation Temp.: -40 ~ +85℃ Storage Temp.: -40 ~ +105℃ Salt fog: After Exposed to Salt Fog 96 Hours (JIS Z2371) Impact: Subject to a drop test onto a smooth oncrete floor from a height of one meter a total of 6 Times. CE mark No.: CA13P3124 Patent No.: 10-1307846 Life: - 1M cycles at Full Travel
