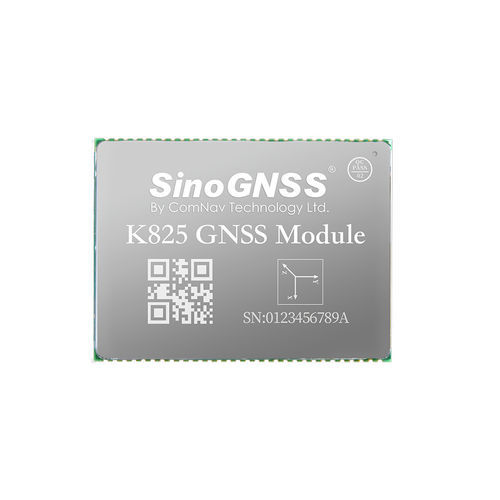

GNSS module K825

As the advanced model of K825, it supports L1, L2, L5, mitigates ionospheric impacts. With GNSS+INS navigation, the dual-antenna GNSS module is suitable for UAV, robotics, marine systems, UGV, portable terminals, deformation monitoring, GIS, and machine control applications. Features 01.Dual-antenna Design for Robust Heading and Positioning 02.Full-constelleation multi-frequency tracking 03.Support L-Band and PPP 04.Support GNSS+INS navigation 05.Surface-mounted design and small size for integration 06.High-performance floating-point arithmetic 07.Industry-leading low power consumption 08.Internal adaptive anti-interference algorithm Robust positioning and heading The K825 is designed with dual-antenna that delivers high-precision positioning and heading information for various unmanned systems. Easy to integrate The K825 is a 30mm×40mm×3.2mm module with surface-mounted design and is ideal for users to integrate. The power consumption is lower to 1.6W . INS+GNSS navigation With up to 20HZ IMU data update rate and inertial navigation fusion algorithm, K825 can provide continuous and high-quality positioning data in harsh environments such as tunnels, buildings and forests.
