CAN bus receiver board K705

EthernetGALILEOGLONASS

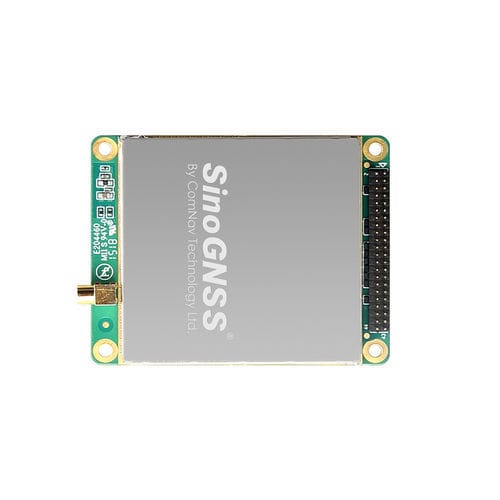

*Replacement Product with same size & pin definition: K803 Card Version (50×40mm) The K705 is a full-constellation triple-frequency GNSS OEM board featuring superior performance and compact design. Features 01.GPS L1/L2/L5, BeiDou B1/B2/B3, GLONASS L1/L2, Galileo E1/E5a/E5b, SBAS, QZSS, IRNSS 02.BeiDou Global Signal B1C, B2a 03.Fully EMI Shielded Module 04.Signal Acquisition Acceleration Module 05.Compact Design for Mobile Applications 06.Support PPP and L-Band 07.DP-Filter Smooth Function 08.Serial, USB, CAN and Ethernet Interfacing Full-constellation & muti-frequency The K705 is a full-constellation triple-frequency GNSS OEM board, tracking GPS, BeiDou, BeiDou Global Signal, GLONASS, Galileo, QZSS, IRNSS, SBAS and L-Band Abundant interfaces The K705 provides abundant interface, including LVCMOS ports, Ethernet, USB, CAN Bus, PPS, Event mark, to meet your various integration and application demanding. Designed for flexibility Designed with multiple interfacing, the K705 is a multi-purpose GNSS product used for high-precision GNSS applications, especially in mobile applications including UAV, robotic system and more.
