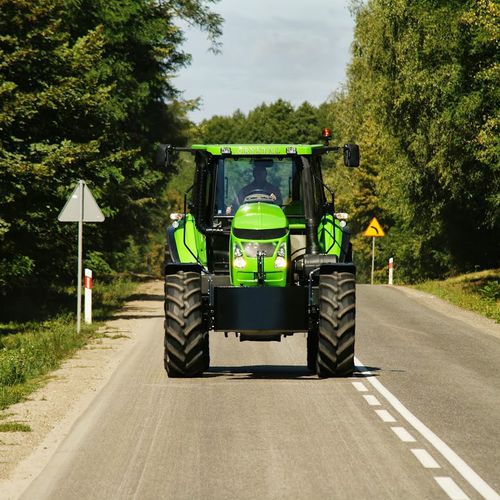

Forestry tractor ORION 160 - 190
power shuttlewith cab3-point hitch

Forestry tractor - ORION 160 - 190 - Crystal Traktors - power shuttle / with cab / 3-point hitch
Forestry tractor - ORION 160 - 190 - Crystal Traktors - power shuttle / with cab / 3-point hitch
Add to favorites
Compare this product


Characteristics

Type
forestry
Transmission
power shuttle
Other characteristic
with cab, 3-point hitch, front PTO
Engine power

Max.: 193 ch
(193 hp)

Min.: 158 ch
(158 hp)

PTO speed

540 rpm, 750 rpm, 1,000 rpm, 1,400 rpm
(3,392.9 rad.min-1, 4,712.4 rad.min-1, 6,283.2 rad.min-1, 8,796.5 rad.min-1)

Maximum speed

Max.: 50 km/h
(31.1 mph)

Min.: 0.3 km/h
(0.2 mph)

Fuel tank capacity

315 l
(83.2 gal)

Description

.dry engine air filter two-gradual with suction device placed in the cab post, does not limit the visibility .exhaust pipe placed in the cab post, does not limit the visibility .gear box 40/40, Power Shuttle with quadruple ratio under the load .4 WD .electronic change of driving direction front - rear .main clutch – wet, multidisc .nominal pressure on the quick release couplings 200 bar, pump capacity 80 l/min .8+1 quick release couplings .3-point linkage Walterscheid cat. III–capacity 8 t .pneumatic single- and double-circuit .front ballast 775 kg .comfortable cab, type CRYSTAL, pneumatic, heated, ventilated with air filter, adjustable side and rear window, A/C, additional passenger seat .working lights - front and back .warning light (beacon lamp) .adjustable steering column in 2 planes .automatic transport hitch with height regulation .lower hitch - Piton Fix type .low-profile tyres: front – 420/70R28; rear – 520/70R38
