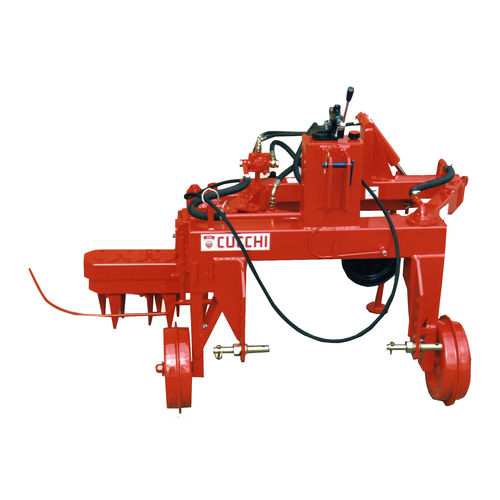

Power harrow ES

mid-row

The ES interceps rotary harrow series is suitable for tillage below rows in vineyards, orchards and other crops in rows. Its extremely sturdy construction allows it to work in heavy, stony and tenacious soils. It has a hydraulic lateral displacement system controlled by sensor, which allows it to be used especially on recently planted crops. The frame is constructed with high strength tubular tubes, the hydraulic tank is integrated in the front part to give greater stability to the machine. TECHNICAL SPECIFICATION •Independent hydraulic system for automatic lateral displacement of cm 40 •Adjustable height and sensitivity sensor •Working depth varies from 2 to 12 cm •Variable overhang from tractor centre on request, for working in different row widths STRENGTS POINTS •Working with close strains (60 cm) •4-rotor harrow head with transmission in oil bath •Ratchet torque limiter •Sensor and movement sensitivity •Harrow unit can be replaced with other equipment using the same frame (earthing up and unearthing discs, hoe unit, mini tiller, mini cutter)
