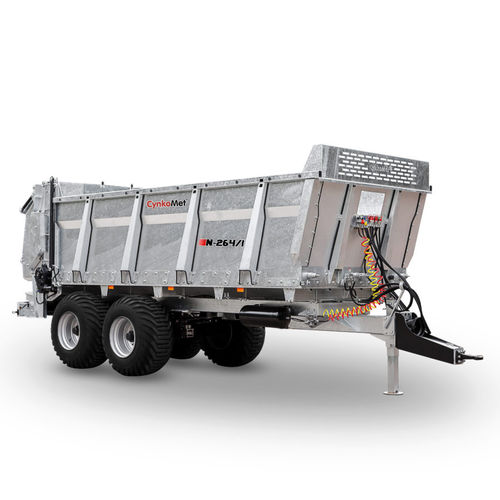

Towed manure spreader N-264/1

horizontals beaterstandem

.Side walls bent with 1 sheet of sheet 4 mm with S355 steel with a height of 1150 mm with walls stiffening profiles – hot-dip galvanised .Adapter AVH2 – two horizontal drums with bolted knives + 2 spreading discs, with a lime counter – hot-dip galvanised .Exchangeable floor made of hot-dip galvanised flat sheet .Two-position drawbar for coupling with the top or bottom hitch of the tractor, with replaceable 50 mm eye, drawbar homologated according to Regulation 55 UN ECE .Hydraulic advance of conveyor with stepless regulation and overload valve .Hot-dip galvanised hydraulic rear wall .Service cover for horizontal drums lifted hydraulically .Hot-dip galvanised front guard, meeting safety requirements .Bolted drawbar diam. 50 .Hot dip galvanised bottom frame with longitudinal sections made of 200x80x6 profiles .Hot-dip galvanised upper frame welded from 160x60x4” .Hydraulic shaft support partially hot-dip galvanised .Hot-dip galvanised conveyor chain – 14×50 links .Exchangeable, hot-dip galvanised conveyor strips made of metallurgical C65 profile .Parking handbrake with crank .Hot-dip galvanised removable exterior ladder with anti-skid steps, facilitating access to the load box .Star wheels made of spheroidal graphite iron .EU homologation .Lighting installation connector cable with 7PIN 12V plug .12V lighting, homologated, with bulbs, LED perimeter lighting .Pneumatic two-line braking system with ALB .Hydraulic installations made of galvanised steel tubes and flexible hoses .Hydraulic connectors to tractor, type ISO 7241-1 DN 12.5 .New 550/60-22.5 wheels .Axles from renowned ADR company, full beam with 100 mm square cross-section, 406 x 120 brake
