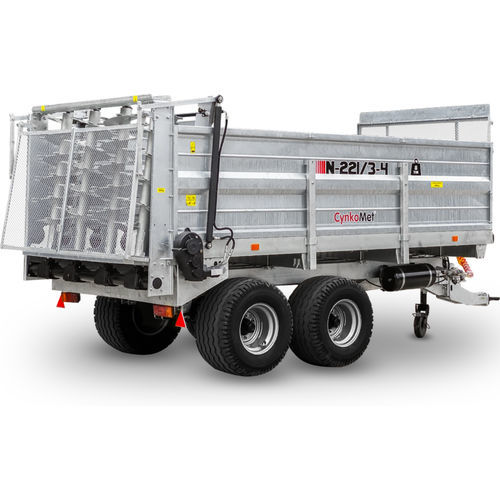

Towed manure spreader N-221/3-4

verticals beaterstandem

.Wall height 1,000 mm – hot-dip galvanised .A4VS adapter – 4 inclined vertical worm drums with discs and lime board, hot-dip galvanised .Exchangeable floor made of hot-dip galvanised flat sheet .Two-position drawbar for coupling with the top or bottom hitch of the tractor, with replaceable 50 mm eye, drawbar homologated according to Regulation 55 UN ECE .Hydraulic advance of conveyor with stepless regulation and overload valve .Hot-dip galvanised hydraulic rear wall .Hot-dip galvanised adapter cover .Hot-dip galvanised front guard, meeting safety requirements .Bolted drawbar diam. 50 .Top and bottom frame hot-dip galvanised (structure protected on exterior and interior of profiles) .Straight drawbar support with collapsible steel wheel, partially hot-dip galvanised .hot-dip galvanised conveyor chain, link diameter 11 mm .Replaceable hot-dip galvanised conveyor slats .Parking handbrake with crank .Exterior ladder with anti-skid steps, facilitating access to loader box .Star wheels made of spheroidal graphite iron .Lighting installation connector cable with 7PIN 12V plug .12V lighting, homologated, rear bulb lamps, LED front lamps, perimeter reflectors .Two-line pneumatic brake system .Hydraulic installations made of galvanised steel tubes and flexible hoses .Hydraulic connectors to tractor, type ISO 7241-1 DN 12.5 .New 500/70-17 wheels .Axles from renowned ADR company, full beam with 80 mm square cross-section, 300×90 brake .Two wheel chocks placed in galvanised pockets .Articulated shaft .Tandem suspension on parabolic leaf springs
