Fruit harvester machine CF 105
self-propelled4-row

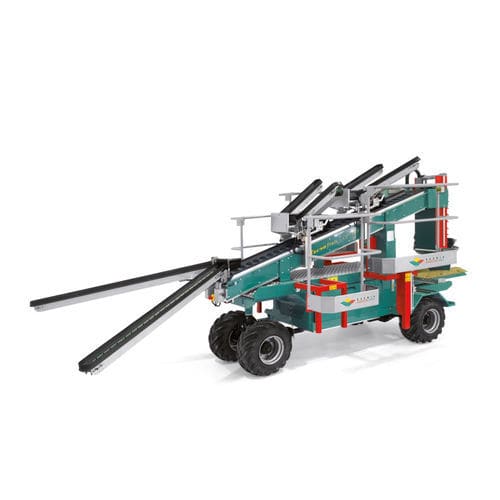

Fruit harvester machine - CF 105 - DARWIN WCDI - self-propelled / 4-row

Fruit harvester machine - CF 105 - DARWIN WCDI - self-propelled / 4-row - image - 2

Fruit harvester machine - CF 105 - DARWIN WCDI - self-propelled / 4-row - image - 3

Fruit harvester machine - CF 105 - DARWIN WCDI - self-propelled / 4-row - image - 4

Fruit harvester machine - CF 105 - DARWIN WCDI - self-propelled / 4-row - image - 5

Add to favorites

Compare this product

Go to the DARWIN WCDI website for more information

Characteristics

Crop type

fruit

Mobility

self-propelled

Number of rows

4-row

Engine power

18.5 kW
(25.2 hp)

Empty weight

2,060 kg
(4,541.5 lb)

Total length

4,180 mm
(164.6 in)

Total height

Min.: 2,418 mm
(95.2 in)

Max.: 2,910 mm
(114.6 in)

Total width

Min.: 1,800 mm
(70.9 in)

Max.: 3,000 mm
(118.1 in)

Description

Compact machine for plants with 3.00 m (118 inches) to 3.90 m (153 inches) inter-row and maximum height of 3.60 m (141 inches) of the plant. The rich standard equipment and a complete range of accessories allow customizing the machine according to the needs of modern fruit farmers. Equipped with a reliable 3-cylinder diesel engine (stage V) that allows low fuel consumption and emissions according to the latest environmental regulation. The 4 side platforms (1.25 x 0.36 m / 49 x 14 inches rear platforms – 0.80 x 0.36 m / 31 x 14 inches front platforms) allow 3 levels of harvesting in a very compact machine. Up to six people can work easily without impediments while guaranteeing maximum ergonomics. Optionally it is possible to choose the new automatic trailer CP04 or, in some special condition’s, the new manual bin-trailer CPM. Through the complete range of accessories, Tecnofruit becomes a multipurpose machine that can be used during all seasons.
