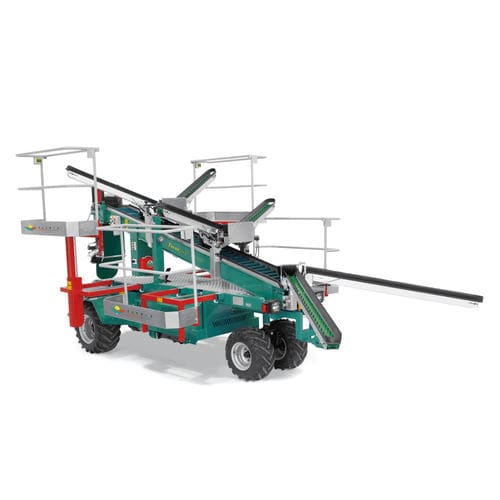

Fruit picking machine CF 110
self-propelled4-row

Fruit picking machine - CF 110 - DARWIN WCDI - self-propelled / 4-row

Fruit picking machine - CF 110 - DARWIN WCDI - self-propelled / 4-row - image - 2

Fruit picking machine - CF 110 - DARWIN WCDI - self-propelled / 4-row - image - 3

Fruit picking machine - CF 110 - DARWIN WCDI - self-propelled / 4-row - image - 4

Fruit picking machine - CF 110 - DARWIN WCDI - self-propelled / 4-row - image - 5

Fruit picking machine - CF 110 - DARWIN WCDI - self-propelled / 4-row - image - 6

Add to favorites

Compare this product

Go to the DARWIN WCDI website for more information

Characteristics

Crop type

fruit

Mobility

self-propelled

Number of rows

4-row

Engine power

18.5 kW
(25.2 hp)

Empty weight

2,355 kg
(5,191.9 lb)

Total length

4,900 mm
(192.9 in)

Total height

Min.: 2,400 mm
(94.5 in)

Max.: 2,875 mm
(113.2 in)

Total width

Min.: 2,070 mm
(81.5 in)

Max.: 3,470 mm
(136.6 in)

Description
