Seed counter with bagger S-160

automatic

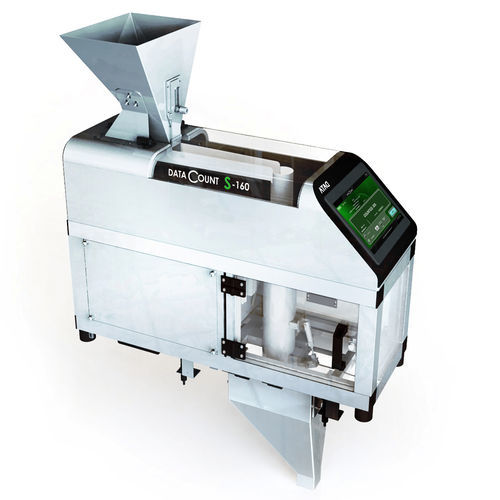

The Multi-Channel Seed Counter S-160 is one of DATA’s integrative industrial seed counter series. Seed processing procedures can be upgraded cost-effectively by combining this highly accurate seed counter with the current packaging machine. The Multi-Channel Seed Counter S-160 can either replace weight filling or volumetric dosing systems or be integrated as an additional device that expands packaging abilities with minimal expense. Following a simplistic protocol, DATA’s Multi-Channel Seed Counter S-160 can be easily combined with existing or new packaging machines, resulting in a new modern counting and packaging system. FEATURES .99.9% accuracy .One-head system .Counting diameter range between 0.5 mm and 25 mm .High throughput (up to 7.5 bags of 1,000 seeds per minute) .Precisely counts a pre-set number of seeds .User-friendly touch-panel operator console .Pneumatic reject system .Air system protection on each detection unit .Can be installed either directly onto the production floor or a transportable frame TECHNICAL SPECIFICATIONS .Voltage: 110/230 VAC .Frequency: 50/60 Hz .Dimensions: 106.5×34.5×98 cm (WxDxH) .Power consumption: 150 W .Compressed dry air: 4 Bar (continuously during operation) .Hopper size: 11,000 cc, 11 liters .Flap volume 2 liters
