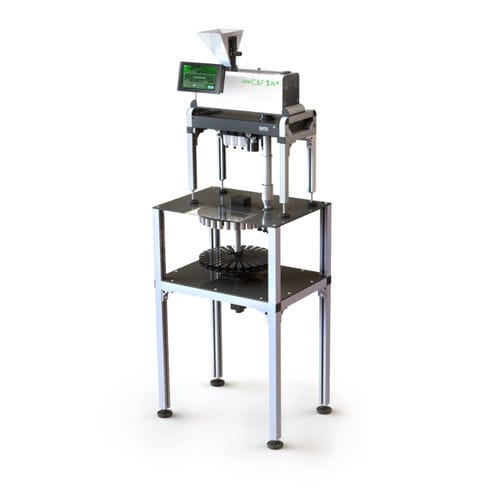

Automatic seed counter S -25

The C&F S-25 Seed Counter and Filler quickly and accurately count seeds of all sizes, automatically filling separate bags with user-defined seed quantities. The C&F S-25 Seed Counter and Filler have a reliable system developed for seed manufacturers and suppliers for whom counting and packaging precise numbers of seeds is vital. The 30-funnel carousel rotates continuously until the order is complete. S-25 Seed Counter and Filler main features are: .99.8% accuracy .Operators can attend to other tasks while filling takes place .Ideal for semi-automatic packaging of medium-sized orders .Low-maintenance and easy to clean FEATURES .Precisely counts all seed shapes from 0.5 mm - 18 mm .Rapidly counts and fills massive quantities of seeds at user-defined quantities of seeds per bag .30 funnels per carousel .Touch-panel operator console .Option for manual filling TECHNICAL SPECIFICATIONS .Voltage: 115/230 VAC, 1 phase .Frequency: 50/60 Hz .Power consumption: 120W .Circuit breaker rate: Minimum 10A slow-blow .Air connector: 6mm .Air consumption: ~4.5 L/min .Compressed dry air: 0.1 Bar (continuously during operation) .Dimensions (cm): 50 x 67 x 160 (WxDxH) .Hopper size: 1000cc, 1 liter .Weight: ~60 kg .Packet size (mm): -Minimum: 85 x 100 (WxH) -Maximum: 170 x 260
